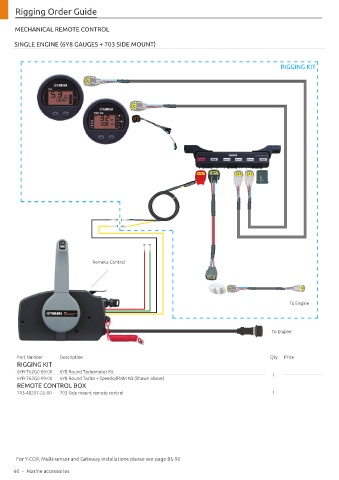

Rigging Order Guide

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (6Y8 GAUGES + 703 SIDE MOUNT)

RIGGING KIT

6Y8-8350T-11-00
6Y8-8356N-01-00
6Y8-81920-01-00
6Y8-83500-11-00

6Y8-83553-01-00

6Y8-85371-01-00

Remote Control
703-48207-1A-10

6Y8-81920-11-00
To Engine

To Engine

Part Number Description Qty Price
RIGGING KIT
6YR-762G0-80-00 6Y8 Round Tachometer Kit
6YR-762G0-90-00 6Y8 Round Tacho + Speedo/FMM Kit (Shown above) 1
REMOTE CONTROL BOX
703-48207-22-00 703 Side mount remote control 1

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
