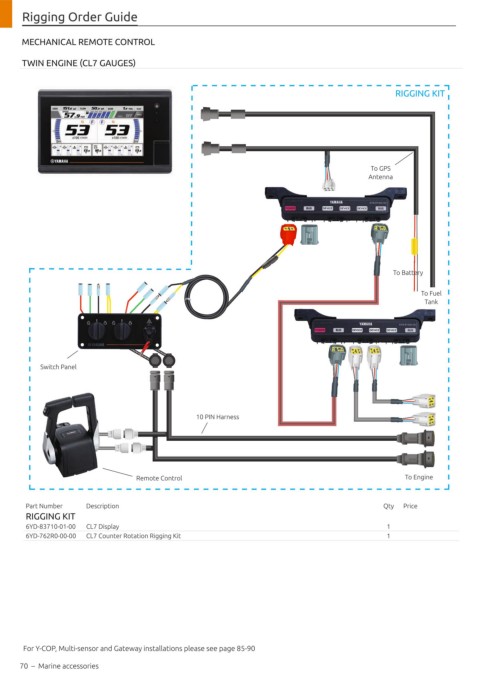

Rigging Order Guide

MECHANICAL REMOTE CONTROL

TWIN ENGINE (CL7 GAUGES)

RIGGING KIT

6Y8-8350T-01-00
To GPS
Antenna

6Y8-8356N-01-00

6Y8-83553-01-00 To Battery

To Fuel
Tank

Switch Panel
6Y8-82570-03-00
704-48205-P1-00

10 PIN Harness

Remote Control To Engine

Part Number Description Qty Price
RIGGING KIT
6YD-83710-01-00 CL7 Display 1
6YD-762R0-00-00 CL7 Counter Rotation Rigging Kit 1

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
