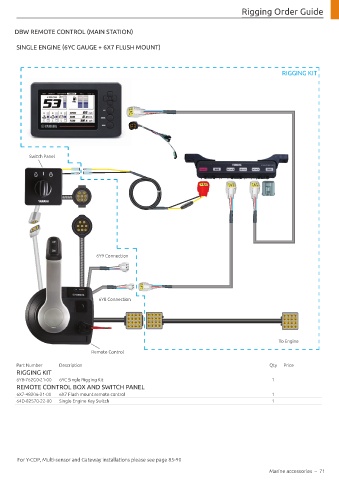

Rigging Order Guide

MECHANICAL REMOTE CONTROL DBW REMOTE CONTROL (MAIN STATION)

SINGLE ENGINE (6YC GAUGE + 6X7 FLUSH MOUNT)

RIGGING KIT

6Y8-8350T-01-00
6Y8-8356N-01-00
6Y8-81920-01-00
64D-82570-21-00
Switch Panel
6Y8-83500-01-00

6Y8-85371-01-00

6Y8-83553-01-00

6Y9 Connection

6Y8 Connection

To Engine
6X7-48206-10-00
Remote Control

Part Number Description Qty Price
RIGGING KIT
6Y8-762G0-21-00 6YC Single Rigging Kit 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X7-48206-21-00 6X7 Flush mount remote control 1
64D-82570-22-00 Single Engine Key Switch 1

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
