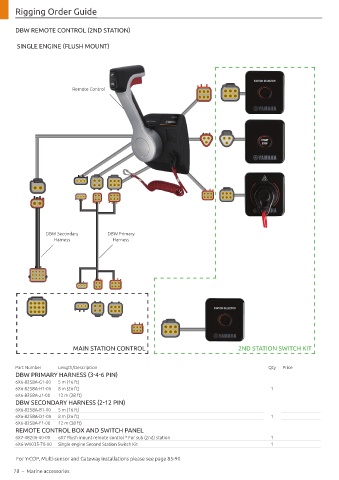

Rigging Order Guide

DBW REMOTE CONTROL (2ND STATION)

SINGLE ENGINE (FLUSH MOUNT)

6X6-48205-53
6X6-82570-B0-00

Remote Control

6X6-82570-90

6X6-82570-80

DBW Secondary DBW Primary
Harness Harness

6X6-82570-B0-00

MAIN STATION CONTROL 2ND STATION SWITCH KIT

Part Number Length/Description Qty Price
DBW PRIMARY HARNESS (3-4-6 PIN)
6X6-8258A-G1-00 5 m (16 ft)
6X6-8258A-H1-00 8 m (26 ft) 1
6X6-8258A-J1-00 12 m (38 ft)
DBW SECONDARY HARNESS (2-12 PIN)
6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-D1-00 8 m (26 ft) 1
6X6-8258A-F1-00 12 m (38 ft)
REMOTE CONTROL BOX AND SWITCH PANEL
6X7-48206-40-00 6X7 Flush mount remote control * For sub (2nd) station 1
6X6-W0035-70-00 Single engine Second Station Switch Kit 1

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
