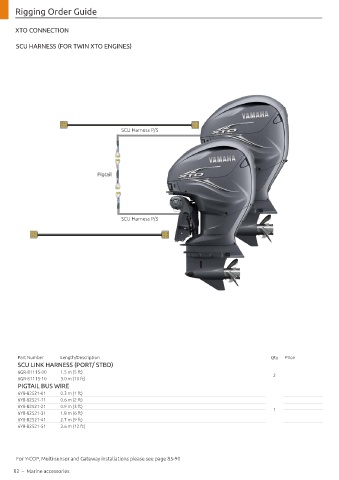

Rigging Order Guide

XTO CONNECTION

SCU HARNESS (FOR TWIN XTO ENGINES)

SCU Harness P/S

Pigtail

SCU Harness P/S

Part Number Length/Description Qty Price
SCU LINK HARNESS (PORT/ STBD)
6GR-81115-00 1.5 m (5 ft) 2
6GR-81115-10 3.0 m (10 ft)
PIGTAIL BUS WIRE
6Y8-82521-01 0.3 m (1 ft)
6Y8-82521-11 0.6 m (2 ft)
6Y8-82521-21 0.9 m (3 ft)
6Y8-82521-31 1.8 m (6 ft) 1
6Y8-82521-41 2.7 m (9 ft)
6Y8-82521-51 3.6 m (12 ft)

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
