Rigging Order Guide

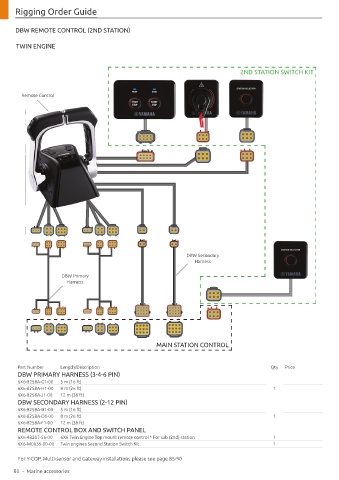

DBW REMOTE CONTROL (2ND STATION)

TWIN ENGINE

2ND STATION SWITCH KIT

Remote Control
6X6-48207-53

6X6-82570-E0-00 6X6-82570-90-00 6X6-82570-B0-00

DBW Secondary
Harness

DBW Primary
Harness
6X6-82570-B0-00

MAIN STATION CONTROL

Part Number Length/Description Qty Price
DBW PRIMARY HARNESS (3-4-6 PIN)
6X6-8258A-G1-00 5 m (16 ft)
6X6-8258A-H1-00 8 m (26 ft) 1
6X6-8258A-J1-00 12 m (38 ft)
DBW SECONDARY HARNESS (2-12 PIN)
6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-D1-00 8 m (26 ft) 1
6X6-8258A-F1-00 12 m (38 ft)
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48207-56-00 6X6 Twin Engine Top mount remote control * For sub (2nd) station 1
6X6-W0035-80-00 Twin engines Second Station Switch Kit 1

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
