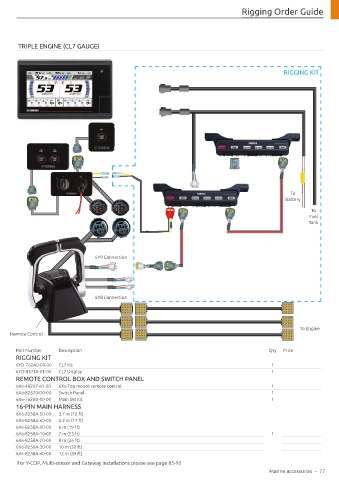

Rigging Order Guide

TRIPLE ENGINE (CL7 GAUGE)

RIGGING KIT

6Y8-8350T-01-00 6Y8-83500-01-00 6Y8-8350S-01-00

6X6-82570-40-00

6Y8-81920-01-00

To
Battery

To
Fuel
6X6-48207-34 Tank

6Y8-83553-01-00

6Y9 Connection

6Y8 Connection

To Engine
Remote Control

Part Number Description Qty Price
RIGGING KIT
6YD-762A0-00-00 CL7 Kit 1
6YD-83710-01-00 CL7 Display 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48207-61-00 6X6 Top mount remote control 1
6X6-82570-D0-00 Switch Panel 1
6X6-762B0-00-00 Main SW Kit 1
16-PIN MAIN HARNESS
6X6-8258A-50-00 3.7 m (12 ft)
6X6-8258A-60-00 5.2 m (17 ft)
6X6-8258A-00-00 6 m (19 ft)
6X6-8258A-10-00 7 m (23 ft) 1
6X6-8258A-20-00 8 m (26 ft)
6X6-8258A-30-00 10 m (32 ft)
6X6-8258A-40-00 12 m (39 ft)
For Y-COP, Multi-sensor and Gateway installations please see page 85-90
