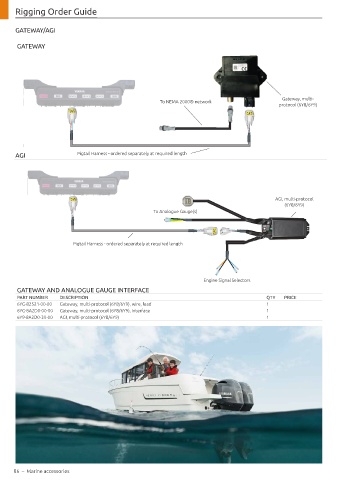

Rigging Order Guide
GATEWAY/AGI
GATEWAY
Gateway, multi-
To NEMA 2000® network
protocol (6Y8/6Y9)
AGI Pigtail Harness - ordered separately at required length
AGI, multi-protocol
(6Y8/6Y9)
To Analogue Gauge(s)
Pigtail Harness - ordered separately at required length
Engine Signal Selectors
GATEWAY AND ANALOGUE GAUGE INTERFACE
PART NUMBER DESCRIPTION QTY PRICE
6YG-82521-00-00 Gateway, multi-protocol (6Y8/6Y9), wire, lead 1
6YG-8A2D0-00-00 Gateway, multi-protocol (6Y8/6Y9), interface 1
6Y9-8A2D0-30-00 AGI, multi-protocol (6Y8/6Y9) 1
