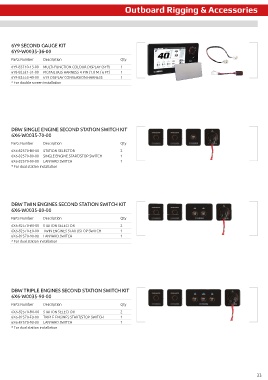

Outboard Rigging & Accessories
RIGGING KITS - FOR DBW REMOTE CONTROL
6YC SINGLE RIGGING KIT (WITHOUT SWITCH PANEL) 6Y9 SECOND GAUGE KIT
6Y8-W0035-D2-00 6Y9-W0035-36-00
Parts Number Description Qty Parts Number Description Qty
6YC-83710-00 6YC MULTI FUNCTION COLOUR DISPLAY 1 6Y9-83710-13-00 MULTI-FUNCTION COLOUR DISPLAY (6Y9) 1
6Y8-81920-01-00 MULTI-HUB ASSY 1 6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 1 6Y9-83553-40-00 6Y9 DISPLAY CONVERSION HARNESS 1
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1 * For double screen installation
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6X6-8258A-30-00 DBW MAIN HARNESS 16 PIN (10 M / 32 FT) 1
6YC-2819U-70-00 OWNER'S MANUAL 1
6YC-2819U-80-00 OWNER'S MANUAL 1
* DBW remote control box and switch panels are required separately.
DBW SINGLE ENGINE SECOND STATION SWITCH KIT
6X6-W0035-70-00
Parts Number Description Qty
6X6-82570-B0-00 STATION SELECTOR 2
6X6-82570-80-00 SINGLE ENGINE START/STOP SWITCH 1
6X6-82570-90-00 LANYARD SWITCH 1
* For dual station installation
6YC TWIN RIGGING KIT DBW TWIN ENGINES SECOND STATION SWITCH KIT
6Y8-W0035-B2-00 6X6-W0035-80-00
Parts Number Description Qty Parts Number Description Qty
6YC-83710-00 6YC MULTI FUNCTION COLOUR DISPLAY 1 6X6-82570-B0-00 STATION SELECTOR 2
6Y8-81920-01-00 MULTI-HUB ASSY 2 6X6-82570-E0-00 TWIN ENGINES START/STOP SWITCH 1
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1 6X6-82570-90-00 LANYARD SWITCH 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 3 * For dual station installation
6Y8-82582-01-00 TERMINAL CAP (2 PIN/POWER) 1
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 2
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6X6-82570-40-00 TWIN ENGINE MAIN SWITCH PANEL 1
6X6-82570-60-00 TWIN ENGINE START/STOP PANEL 1
6X6-8258A-40-00 DBW MAIN HARNESS 16 PIN (12 M / 38 FT) 2
6YC-2819U-70-00 OWNER'S MANUAL 1 DBW TRIPLE ENGINES SECOND STATION SWITCH KIT
6YC-2819U-80-00 OWNER'S MANUAL 1 6X6-W0035-90-00
* DBW remote control box is required separately.
Parts Number Description Qty
6X6-82570-B0-00 STATION SELECTOR 2
6X6-82570-F0-00 TRIPLE ENGINES START/STOP SWITCH 1
6X6-82570-90-00 LANYARD SWITCH 1
* For dual station installation
