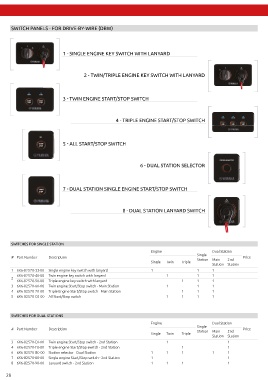

Page 30 - Yamaha Zubehör Aussenbordmotoren 2017

Outboard Rigging & Accessories

SWITCH PANELS - FOR DRIVE-BY-WIRE (DBW) SWITCH PANELS - FOR MECHANICAL REMOTE CONTROL

1 - SINGLE ENGINE KEY SWITCH WITH LANYARD 1 - SINGLE ENGINE KEY SWITCH WITH LANYARD

2 - TWIN/TRIPLE ENGINE KEY SWITCH WITH LANYARD

2 - SINGLE ENGINE MAIN STATION SWITCH WITH PANEL

3 - TWIN ENGINE START/STOP SWITCH

4 - TRIPLE ENGINE START/STOP SWITCH 3 - TWIN ENGINE KEY SWITCH WITH LANYARD

5 - ALL START/STOP SWITCH
4 - REPLACEMENT LANYARD CORD

6 - DUAL STATION SELECTOR

# P/N Description Remote control Remark Price

7 - DUAL STATION SINGLE ENGINE START/STOP SWITCH 1 704-82570-12-00 Single key switch with lanyard For 704 single With choke switch
64D-82570-
2 Single engine Main Station switch with panel For 6X3/6X7 w/ 2P coupler for Emergency Stop SW
22-00
3 6Y8-82570-04-00 Twin key switch with lanyard For 704 twin For Digital network system (6Y8)
8 - DUAL STATION LANYARD SWITCH 4 682-82556-00-00 Engine shut-off lanyard cord --- Replacement lanyard cord

SWITCHES FOR SINGLE STATION
Engine Dual Station
Single
# Part Number Description Station Main 2nd Price
Single Twin Triple
Station Station
1 6X6-82570-33-00 Single engine key switch with lanyard 1 1 1
6X6-82570-40-00 Twin engine key switch with lanyard 1 1 1
2
6X6-82570-50-00 Triple engine key switch with lanyard 1 1 1
3 6X6-82570-60-00 Twin engine Start/Stop switch - Main Station 1 1 1
4 6X6-82570-70-00 Triple Engine Start/Stop switch - Main Station 1 1 1
5 6X6-82570-C0-00 All Start/Stop switch 1 1 1 1

SWITCHES FOR DUAL STATIONS
Engine Dual Station
Single
# Part Number Description Station Main 2nd Price
Single Twin Triple
Station Station
3 6X6-82570-E0-00 Twin engine Start/Stop switch - 2nd Station 1 1
4 6X6-82570-F0-00 Triple engine Start/Stop ewitch - 2nd Station 1 1
6 6X6-82570-B0-00 Station selector - Dual Station 1 1 1 1 1
7 6X6-82570-80-00 Single engine Start/Stop switch - 2nd Station 1 1
8 6X6-82570-90-00 Lanyard switch - 2nd Station 1 1 1 1
