Outboard Rigging & Accessories

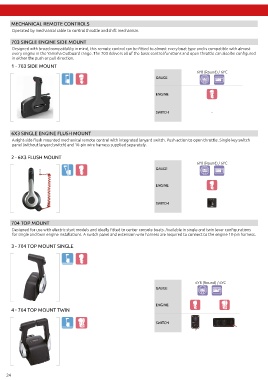

MECHANICAL REMOTE CONTROLS MECHANICAL REMOTE CONTROL BOXES
Operated by mechanical cable to control throttle and shift mechanism. # Part Number Engine Throttle PTT Mount Price Remarks
Push Pull
703-48207-21-00 1 1 For Electric start models.
703 SINGLE ENGINE SIDE MOUNT 1 703-48260-20-00 1 Side mount For Manual start models.
Designed with broad compatibility in mind, this remote control can be fitted to almost every boat type and is compatible with almost 703-48206-20-00 Single 1 (replacement of 701 control)
every engine in the Yamaha Outboard range. The 703 delivers all of the basic control functions and open throttle can also be configured 2 6X3-48206-02-00 1 1 Flush mount With emergency shut-off cord.
in either the push or pull direction. 3 704-48205-P1-00 1 1

1 - 703 SIDE MOUNT 4 704-48207-P1-00 Twin 1 1 Top Mount
6Y8 (Round) / 6YC
GAUGE

ENGINE

SWITCH -

6X3 SINGLE ENGINE FLUSH MOUNT
A right-side flush mounted mechanical remote control with integrated lanyard switch. Push action to open throttle. Single key switch
panel (without lanyard switch) and 10-pin wire harness supplied separately.
704 CONTROL SPACER KITS 703 THROTTLE CONVERSION
2 - 6X3 FLUSH MOUNT
6Y8 (Round) / 6YC Description Part Number Price Description Part Number Price
GAUGE For 704 Premium Single 704-48293-20-00 703 Conversion Kit (Pull to Push) 703-48261-01-00
For 704 Premium Twin 704-48293-30-00 703 Conversion Kit (Push to Pull) 703-48261-11-00

ENGINE

SWITCH -

704 TOP MOUNT
Designed for use with electric start models and ideally fitted to center console boats. Available in single and twin lever configurations
for single and twin engine installations. A switch panel and extension wire harness are required to connect to the engine 10-pin harness.

3 - 704 TOP MOUNT SINGLE

6Y8 (Round) / 6YC
GAUGE

ENGINE
4 - 704 TOP MOUNT TWIN

SWITCH

24 25
