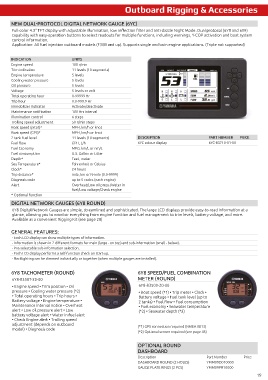

Page 21 - Yamaha Zubehör Aussenbordmotoren 2017

Outboard Rigging & Accessories

Instruments NEW DUAL-PROTOCOL DIGITAL NETWORK GAUGE (6YC)
Full-color 4.3” TFT display with adjustable illumination, low reflection filter and anti-dazzle Night Mode. Dual protocol (6Y8 and 6Y9)
Today's boat owners want more information than ever before - and Yamaha Digital Network Gauges capability with easy-operation buttons to select readouts for multiple functions, including warnings, Y-COP activation and boat system
deliver it. control information.
Application: All fuel injection outboard models (F30B and up). Supports single and twin engine applications. (Triple not supported)
Yamaha is proud to offer a comprehensive line-up of Digital Network Gauges, to bring you more
convenience, flexibility, and clear information than you ever thought possible. This really is the leading
edge of rigging technology, matched up with the supreme level of innovation and reliability you’ve come INDICATION UNITS
to expect from Yamaha. Experience it. Engine speed 100 r/min
Trim indication 11 levels (10 segments)
Engine temperature 5 levels
PREMIUM DIGITAL NETWORK GAUGE (6Y9) Cooling water pressure 5 levels
Featuring a 5” full-colour, high-resolution LCD display, the 6Y9 Premium Digital Network Gauge II can be configured to display multiple Oil pressure 5 levels
combinations of information based on the operator's preference both for the outboard(s) and the boat status. Voltage 5 levels or volt
Available as a convenient Rigging Kit (see page 28)
Total operating hour 0-99999 Hr
Trip hour 0.0-999.9 Hr
Immobilizer indicator Activate/deactivate
Maintenance notification 100 Hrs interval
Illumination control 6 steps
Trolling speed adjustment 50 r/min steps
Boat speed (pitot)* MPH, km/h or knot
Boat speed (GPS)* MPH, km/h or knot
2 tank fuel level 11 levels (10 segments) DESCRIPTION PART NUMBER PRICE
Fuel flow GPH, L/h 6YC colour display 6YC-83710-01-00
Fuel Economy MPG, km/L or nm/L
DESCRIPTION PART NO PRICE Fuel consumption U.S. Gallon or Litter
6Y9 Colour Display 6Y9-83710-13-00 Depth* Feet, meter
Replacement Cover 6Y9-87278-00-00 Sea Temperature* Fahrenheit or Celsius
Replacement Bezel 6Y9-83512-00-00 Clock* 24 hours
Trip distance* mile, km or N-mile (0.0-9999)
Diagnosis code up to 5 codes (each engine)
Switch Between Analogue and Alert Overheat/Low oil press./Water in
Digital Display Settings Display data for up to 3 engines on 1 screen REGULAR INDICATION: fuel/Low voltage/Check engine
• Shift position * Optional function
• Engine speed
• Trim position DIGITAL NETWORK GAUGES (6Y8 ROUND)
• Engine temperature 6Y8 Digital Network Gauges are simple, streamlined and sophisticated. The large LCD displays provide easy-to-read information at a
• Cooling water pressure glance, allowing you to monitor everything from engine function and fuel management to trim levels, battery voltage, and more.
• Oil pressure Available as a convenient Rigging Kit (see page 28)
• Main battery voltage
• Sub-battery voltage GENERAL FEATURES:
• Boat speed
• Fuel economy - Each LCD display can show multiple types of information.
• Fuel consumption - Information is shown in 2 different formats for main (large - on top) and sub-information (small - below).
• Fuel flow - Pre-selectable sub-information selection.
• Engine operating hours - Each LCD display performs a self-function check on start-up.
• Trip meter - Backlighting can be dimmed individually or together (when multiple gauges are installed).
• Available fuel volume
• Connections for up to 4 tanks 6Y8 TACHOMETER (ROUND) 6Y8 SPEED/FUEL COMBINATION
• Seawater temperature 6Y8-8350T-20-00 METER (ROUND)
• Depth
• Maintenance interval notice • Engine speed • Trim position • Oil 6Y8-83500-20-00
3 display background choices Choice of character colours • Trolling speed adjustment (depending on model) pressure • Cooling water pressure (*2) • Boat speed (*1) • Trip meter • Clock •
and night mode • Total operating hours • Trip hours • Battery voltage • Fuel tank level (up to
Battery voltage • Engine temperature • 2 tanks) • Fuel flow • Fuel consumption
Maintenance interval notice • Overheat • Fuel economy • Seawater temperature
ALERT INDICATION: alert • Low oil pressure alert • Low (*2) • Seawater depth (*2)
• Overheat battery voltage alert • Water in fuel alert
• Low oil pressure • Check Engine alert • Trolling speed
• Low voltage adjustment (depends on outboard (*1) GPS connection required (NMEA 0813)
• Water in fuel model) • Diagnosis code (*2) Optional sensor required (see page 45)
• Check engine

OPTIONAL ROUND
CONDITION INDICATION: DASHBOARD
• Yamaha security system on duty Description Part Number Price
• Under warming up control DASHBOARD ROUND (2 HOLES) YMM09D010000
• Under synchronization control GAUGE PLATE RINGS (2 PCS) YMM09PR10000
