Outboard Rigging & Accessories

HARNESSES MULTI-FUNCTION TILLER HANDLE

Our convenient 6X4 Multi-function Tiller Handle is available as an option for mid-
range outboard models.

• Ergonomic design and longer, larger-diameter throttle grip • Contoured,
composite-coated lever for smooth, comfortable shifting • Easy access Power
Trim and Tilt switch for on-the-go operation • Neat and conveniently positioned
LED engine warning lamp • Key switch and STOP switch easily accessible from the
handle • Built-in NEUTRAL switch and buzzer for simple rigging

1 - TILLER HANDLE - MAIN BODY

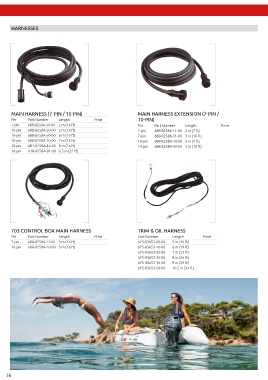

MAIN HARNESS (7-PIN / 10-PIN) MAIN HARNESS EXTENSION (7-PIN / B Applicable to F25 – F115.
A - Engine start/stop
Pin Part Number Length Price 10-PIN) A B - Shift control
7-pin 688-82586-50-00 5 m (16 ft) Pin Part Number Length Price C - Variable trolling switch
10-pin 688-8258A-50-00 5 m (16 ft) 7-pin 688-82586-11-00 2 m (7 ft) C D - PTT Control
10-pin 688-8258A-60-00 6 m (19 ft) 7-pin 688-82586-31-00 3 m (10 ft) E - Throttle Control
10-pin 688-8258A-70-00 7 m (23 ft) 10-pin 688-8258A-10-00 2 m (7 ft) F - Low oil pressure alert
10-pin 6K1-8258A-40-00 8 m (26 ft) 10-pin 688-8258A-30-00 3 m (10 ft) G - Overheat alert
10-pin 61B-8258A-01-00 9.5 m (32 ft)
H - Emergency stop lanyard

F
H G E
D

703 CONTROL BOX MAIN HARNESS TRIM & OIL HARNESS
Pin Part Number Length Price Part Number Length Price 2 - FITTING KIT 3 - ENGINE GROMMET
7-pin 688-82586-21-00 5 m (16 ft) 6Y5-83653-00-00 5 m (16 ft) Fitting kits may differ by outboard model, as shown in the table below Some outboard models require an engine grommet to fit additional wire
10-pin 688-8258A-20-00 5 m (16 ft) 6Y5-83653-10-00 6 m (19 ft) leads.
6Y5-83653-20-00 7 m (23 ft) 4 - YCOP ATTACHMENT KIT
6Y5-83653-30-00 8 m (26 ft) Required to activate YCOP immobilizer installed with Multifunction Tiller Handle.
6Y5-83653-40-00 9 m (29 ft) F115B_Multi-function tiller handle Description Price Qty
Part No
6Y5-83653-50-00 10.5 m (34 ft)
6Y8-82553-01-00 Main bus harness 0.3 M (1 FT) 1
6Y8-82521-51-00 Pigtail bus harness 3.6 M (12 FT) 1
6Y8-82117-00-00 Pigtail bus with power lead 1
6Y8-81920-11-00 Single hub 2
6Y5-83553-M0-00 Wire harness 1

1* 2 3 4
ENGINE
OUTBOARD MODEL TILLER HANDLE - Y-COP ATTACHMENT
MAIN BODY PRICE FITTING KIT PRICE GROMMET FOR PRICE KIT PRICE
YCOP
F25A/F25D/FT25F 6X4-42103-08-00 Included
F30B/F40F 6X4-42102-81-00 (Not Required)
F50F/F50H/FT50G/FT50J/ 6C5-42725-50-00
F60C/F60F/FT60D/FT60G 6X4-42102-91-00
F70A 6X4-42103-65-00 ** (Not Required) 6Y8-W0035-C0-00
F80B/F100D / F100F 6X4-42102-A1-00 68V-42725-20-00
F115B/F130A 6X4-42102-C0-00 (Not Required)
1* F25A/F25D/FT25F are without C/F/G - depending on models - Consult your dealer
** F100F need to install plate 65K 42121 00 00
