P. 44
Outboard Rigging & Accessories

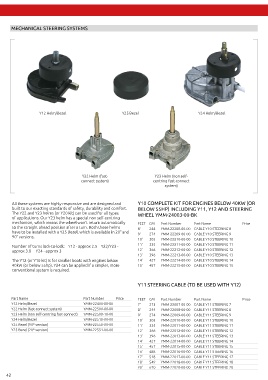

MECHANICAL STEERING SYSTEMS
Y20 COMPLETE KIT FOR ALL ENGINES (IN- Y21 STEERING CABLE (TO BE USED WITH Y22/Y23/
CLUDING Y21, Y22, Y25 AND STEERING WHEEL Y24)
YMM-24007-00-BK
FEET CM Part Number Part Name Price FEET CM Part Number Part Name Price
10' 305 YMM-22310-00-00 CABLE Y20 STEERING 10 7' 213 YMM-22107-00-00 CABLE Y21 STEERING 7
11' 335 YMM-22311-00-00 CABLE Y20 STEERING 11 8' 244 YMM-22108-00-00 CABLE Y21 STEERING 8
12' 366 YMM-22312-00-00 CABLE Y20 STEERING 12 9' 274 YMM-22109-00-00 CABLE Y21 STEERING 9
13' 396 YMM-22313-00-00 CABLE Y20 STEERING 13 10' 305 YMM-22110-00-00 CABLE Y21 STEERING 10
14' 427 YMM-22314-00-00 CABLE Y20 STEERING 14 11' 335 YMM-22111-00-00 CABLE Y21 STEERING 11
15' 457 YMM-22315-00-00 CABLE Y20 STEERING 15 12' 366 YMM-22112-00-00 CABLE Y21 STEERING 12
16' 488 YMM-22316-00-00 CABLE Y20 STEERING 16 13' 396 YMM-22113-00-00 CABLE Y21 STEERING 13
17' 518 YMM-22317-00-00 CABLE Y20 STEERING 17 14' 427 YMM-22114-00-00 CABLE Y21 STEERING 14
15' 457 YMM-22115-00-00 CABLE Y21 STEERING 15
16' 488 YMM-22116-00-00 CABLE Y21 STEERING 16
17' 518 YMM-22117-00-00 CABLE Y21 STEERING 17
Y12 Helm/Bezel Y25 Bezel Y24 Helm/Bezel 18' 549 YMM-22118-00-00 CABLE Y21 STEERING 18
19' 579 YMM-22119-00-00 CABLE Y21 STEERING 19
20' 610 YMM-22120-00-00 CABLE Y21 STEERING 20
21' 640 YMM-22121-00-00 CABLE Y21 STEERING 21
22' 671 YMM-22122-00-00 CABLE Y21 STEERING 22
23' 701 YMM-22123-00-00 CABLE Y21 STEERING 23
24' 732 YMM-22124-00-00 CABLE Y21 STEERING 24
25' 762 YMM-22125-00-00 CABLE Y21 STEERING 25
ACCESSORIES FOR MECHANICAL SYSTEMS
Y22 Helm (fast- Y23 Helm (non self- Some outboard models require additionnal accessories for the Y11 Steering Cable with Transom
connect system) centring fast-connect conncection between the steering cable and the engine. Support (YMM-22601-00-00) using Clamp
system) block.
Description Part Number Price
Clamp block to support steering cables YMM-22601-00-00
All these systems are highly responsive and are designed and Y10 COMPLETE KIT FOR ENGINES BELOW 40KW (OR (aluminium and stainless steel)
built to our exacting standards of safety, durability and comfort. BELOW 55HP) INCLUDING Y11, Y12 AND STEERING Splash well mounting support for steering YMM-22602-00-00
The Y22 and Y23 helms (or Y20 kit) can be used for all types WHEEL YMM-24003-00-BK cables (corrosion resistant)
of applications. Our Y23 helm has a special non self-centring Clamp block to support steering cables YMM-22603-00-00
mechanism, which means the wheel won’t return automatically FEET CM Part Number Part Name Price (corrosion resistant painted steel)
to the straight ahead position after a turn. Both these helms 8’ 244 YMM-22208-00-00 CABLE Y10 STEERING 8 Clevis for YMM-22601-00-00, YMM-22602- YMM-22610-00-00 Clevis YMM-22610- Clevis YMM-22611-
have to be installed with a Y25 Bezel, which is available in 20° and 9’ 274 YMM-22209-00-00 CABLE Y10 STEERING 9 00-00 or YMM-22603-00-00 00-00 00-00
90° versions. Clevis for YMM-22601-00-00, YMM-22602- YMM-22611-00-00
10’ 305 YMM-22210-00-00 CABLE Y10 STEERING 10 00-00 or YMM-22603-00-00
Number of turns lock-to-lock: Y12 - approx 2.5 Y22/Y23 - 11’ 335 YMM-22211-00-00 CABLE Y10 STEERING 11
approx 3.8 Y24 - approx 3 12’ 366 YMM-22212-00-00 CABLE Y10 STEERING 12
13’ 396 YMM-22213-00-00 CABLE Y10 STEERING 13 STEERING GUIDE ATTACHMENT KITS
The Y12 (or Y10 kit) is for smaller boats with engines below 14’ 427 YMM-22214-00-00 CABLE Y10 STEERING 14
40kW (or below 55hp). Y24 can be applied if a simpler, more 15’ 457 YMM-22215-00-00 CABLE Y10 STEERING 15 These kits are required for connection between the steering cable end and the outboard’s steering hook.
conventional system is required.
Model Part Number Price
Y11 STEERING CABLE (TO BE USED WITH Y12) F8C(-03/2007)/FT8D(-03/2007) 68T-61350-00-00
F8C(04/2007-)/FT8D(04/2007-)/F9.9J/FT9.9L 68T-61350-10-00
9.9F/15F/F9.9C/FT9.9D/F15A 63V-61350-00-00
Part Name Part Number Price FEET CM Part Number Part Name Price FT9.9A/F9.9B 6G8-61350-00-00
Y12 Helm/Bezel YMM-22400-00-00 7' 213 YMM-22007-00-00 CABLE Y11 STEERING 7 F15C/F20B 6AH-61350-00-00
Y22 Helm (fast-connect system) YMM-22500-00-00 8' 244 YMM-22008-00-00 CABLE Y11 STEERING 8 20C/20D/25B/25N/25V/30D/30G/40Q 689-61350-02-00
Y23 Helm (non self-centring fast-connect) YMM-22500-10-00 9' 274 YMM-22009-00-00 CABLE Y11 STEERING 9 F25D/FT25F/F30B/F40F 6BG-61350-00-00
Y24 Helm/Bezel YMM-22510-00-00 10' 305 YMM-22010-00-00 CABLE Y11 STEERING 10 40V/50H/F50A/FT50C 63D-61350-00-00
Y25 Bezel (90º version) YMM-22550-00-00 11' 335 YMM-22011-00-00 CABLE Y11 STEERING 11 F20A/F25A/FT25B/F30A/F40B/C/D/F50F/H/ 65W-61350-00-00
Y25 Bezel (20º version) YMM-22551-00-00 12' 366 YMM-22012-00-00 CABLE Y11 STEERING 12 F60A/C/F/FT50G/J/FT60B/D/G/F70A/40X
13' 396 YMM-22013-00-00 CABLE Y11 STEERING 13 F25G 6FM-61350-00-00
14' 427 YMM-22014-00-00 CABLE Y11 STEERING 14 50G/60F/70B/75C/90A/75A/85A 688-61350-10-00
15' 457 YMM-22015-00-00 CABLE Y11 STEERING 15 F80A/B/F100A/D/F 67F-61350-00-00
16' 488 YMM-22016-00-00 CABLE Y11 STEERING 16 F100F/F115B/F130A 6EK-61350-00-00
17' 518 YMM-22017-00-00 CABLE Y11 STEERING 17 F100B/F115A/F150A/F175A/V4/V6 (2 & 4 stroke) 6E5-61350-02-00
18' 549 YMM-22018-00-00 CABLE Y11 STEERING 18 Tie-Bar Kit
20' 610 YMM-22020-00-00 CABLE Y11 STEERING 20 F115 to F300 (V6) Adjustable distance: 600-800mm 6E5-61301-01-00
