Page 49 - Yamaha Zubehör Aussenbordmotoren 2017

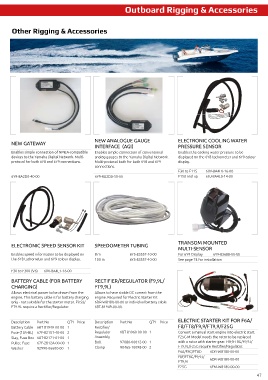

Outboard Rigging & Accessories

FUEL TANKS AND ACCESSORIES Other Rigging & Accessories

FUEL TANK:
Description Part Number Price
Yamaha 12 litre plastic tank 6YL-24201-05-0Q
(length 363mm x width 265mm x height 230mm)
Yamaha 25 litre plastic tank 6YK-24201-03-0Q
(length 536mm x width 362mm x height 233mm)

FUEL PICKUP:
Description Part Number Price
12 litres 979-51242-61-0Q
25 litres 979-51242-62-0Q

FUEL CAP:
Description Part Number Price
12 litre tank MAR-COMBI-CP-12
25 litre tank with fuel gauge MAR-COMBI-CP-25
25 litre tank without fuel gauge 6YK-24610-10-00

JERRY CAN: NEW GATEWAY NEW ANALOGUE GAUGE ELECTRONIC COOLING WATER
Description Part Number Price INTERFACE (AGI) PRESSURE SENSOR
5 litre Jerry can YMM-5LTRE-00-11 Enables simple connection of NMEA-compatible Enables simple connection of conventional Enables the cooling water pressure to be
No-spill spout for 5 litre Jerry can YMM-NSPSP-T0-00 devices to the Yamaha Digital Network. Multi- analog gauges to the Yamaha Digital Network. displayed on the 6Y8 tachometer and 6Y9 colour
1 litre Jerry can YMM-10LTR-E0-10 protocol for both 6Y8 and 6Y9 connections. Multi-protocol both for both 6Y8 and 6Y9 display.
connections.
FUEL PIPE JOINT (FEMALE): F30 to F115 60V-8A4L0-16-00
Description Part Number Price 6Y9-8A2D0-40-00 6Y9-8A2D0-30-00 F150 and up 69J-8A4L0-14-00
For 6mm OM side 6G1-24305-05-00
For 6mm Tank side 6Y1-24305-06-00
For 8mm OM side 6E5-24305-06-00
For 8mm Tank side 6Y2-24305-06-00

FUEL PIPE JOINT (MALE):
Description Part Number Price
For 6mm 6G1-24304-10-00
For 8mm 6E5-24304-20-00

PRIMARY PUMP:
Description Part Number Price ELECTRONIC SPEED SENSOR KIT SPEEDOMETER TUBING TRANSOM MOUNTED
For 6mm 6Y1-24360-52-00 MULTI-SENSOR
For 8mm 6Y2-24360-52-00 Enables speed information to be displayed on 8 m 6Y5-83557-10-00 For 6Y9 Display 6Y9-83688-00-00
6mm F4B/F5A/F6C under the cowl 6BX-24360-00-00 the 6Y8 tachometer and 6Y9 colour display. 100 m 6Y5-83557-40-00 See page 74 for installation

FUEL HOSE: F30 to F300 (V6) 60V-8A4L1-16-00
Description Part Number Price
6mm 30m 90890-56878-00 BATTERY CABLE (FOR BATTERY RECTIFIER/REGULATOR (F9,9L/
8mm 30m 90790-77001-00 CHARGING) FT9,9L)
Allows electrical power to be drawn from the Allows to have stable DC current from the
FUEL PIPE COMPLETE: engine. This battery cable is for battery charging engine. Required for Electric Starter Kit
Description Part Number Price only - not suitable for the starter motor. F9.9J/ 6DR-W8180-00-00 or individual battery cable
6mm, 3m, both ends with joint 6Y1-24306-55-00 FT9.9L require a Rectifier/Regulator. 68T-81949-00-00.
6mm, 3m, with one joint 6Y4-24306-84-00
8mm, 3m, both ends with joint 6Y2-24306-56-00 ELECTRIC STARTER KIT FOR F6A/
8mm, 3m, with one joint 6Y2-24306-45-00 Description Part No QTY Price Description Part No QTY Price F8/FT8/F9,9/FT9,9/F25G
6mm, 3m, Permanent Sealed, both ends with joint 6YL-24306-54-00 Battery Cable 68T-81949-00-00 1 Rectifier/ 68T-81960-00-00 1
Regulator
8mm, 3m, Permanent Sealed, with one joint 6YK-24306-44-00 Fuse (10A-BL) 67F-82151-40-00 2 Convert a manual start engine into electric start.
Stay, Fuse Box 68T-82171-01-00 1 Assembly F25G M Model needs the rotor to be replaced
Puller, Fuse 67F-2812A-00-00 1 Bolt 97080-06012-00 1 with a rotor with starter gear. F8F/FT8G/F9,9J/
Note : Fuel pipes and related parts presented in this section are intended for portable use only. Washer 92990-06600-00 1 Clamp 90465-10098-00 2 FT9,9L/F25G require Rectifier/Regulator.
F6A/F8C/FT8D 6DR-W8180-00-00
F8F/FT8G/F9,9J/
FT9,9L 6DR-W8180-00-00
F25G 6FM-W8180-00-00
46 47
