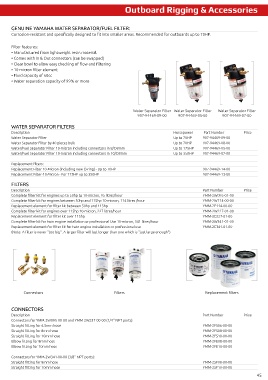

Page 47 - Yamaha Zubehör Aussenbordmotoren 2017

Outboard Rigging & Accessories

STEERING HOOKS GENUINE YAMAHA WATER SEPARATOR/FUEL FILTER:
Corrosion-resistant and specifically designed to fit into smaller areas. Recommended for outboards up to 70HP.
Model Type Part Number Price
Universal Steering Hook (A50) for engines between 5 and 25hp YMM-21220-00-00 Filter features:
6C/D/8C/9.9D/15D/40Q Ball post type, not for F8B/F9.9A/B/25J 676-48511-02-00
F6A/F8C/FT8D/F9.9C/FT9.9D/F9.9F/FT9.9G/F9.9J/FT9.9LF15A/9.9F/15F Steering guide type 63V-48511-01-00 • Manufactured from lightweight resin material.
F8A/B/F9.9A/B/25J/30D (‘87-’96) Ball post type 6G8-48511-10-00 • Comes with In & Out connectors (can be swapped)
F8A/B/F9.9A/B/25J/30D (‘87-’96) Steering guide type 6G8-48511-20-00 • Clear bowl to allow easy checking of flow and filtering
F15C/F20B 6AH-48511-01-00 • 10-micron filter element
20C(‘85-’96) 20D/25B/25D/N/30A/G (‘85-’89) Ball post type/Steering guide type 689-48511-02-00 • Fluid capacity of 60cc
20D/25N (‘90-’00) Ball post type/Steering guide type 6L2-48511-00-00 • Water separation capacity of 99% or more
20D/25N (‘01-) 25J/30D (‘94--) 6J8-48511-01-4D
25J/30DETO (‘99-’01) Steering guide type 6J8-48511-52-00
F20A/F25A/F25D/F25G/FT25B/FT25F/F30A/F30B/F40B/F40F/F50F/F50H/ Steering guide type 65W-48511-01-00
FT50B/FT50G/FT50J/F60A/F60C/F60F/FT60B/FT60D/FT60G/F70A/40X
25B/50G/60F/70B Steering guide type 6H3-48511-52-00
25B/Q/40H/50D/50G/60F/70B/75A/80A/85A/90A/55B (‘95--) Ball post type 688-48511-01-4D Water Separator Filter Water Separator Filter Water Separator Filter
55B (‘92-’94) Steering guide type 688-48511-51-1D 907-94469-09-00 907-94469-05-00 907-94469-07-00
55B (‘95-’98) Steering guide type 688-48511-52-00
55B (‘90-’94) 75A/85A (‘90-’93) Ball post type 688-48511-01-4D WATER SEPARATOR FILTERS
75C/90A Steering guide type 688-48511-12-00 Description Horsepower Part Number Price
25Q/40H/50D Steering guide type 6H4-48511-51-4D Water Separator Filter Up to 70HP 907-94469-09-00
40V/Y/F40A/F45A/50H/F50A/B/FT50B/C 63D-48511-01-00 Water Separator Filter by 40 pieces bulk Up to 70HP 907-94469-08-00
F80A/F80B/F100A/F100D Steering guide type 67F-48511-01-00 Water/Fuel Separator Filter 10-micron including connectors in 8/O8mm Up to 175HP 907-94469-05-00
F115A Steering guide type 68V-48511-01-00 Water/Fuel Separator Filter 10-micron including connectors in 10/O8mm Up to 350HP 907-94469-07-00
Filters and Fuel Accessories Replacement filters:
Replacement Filter 10-Micron (including new O-ring) - Up to 70HP 907-94469-14-00
Replacement Filter-10 Micron - For 175HP up to 350HP 907-94469-13-00
FILTERS
Description Part Number Price
Complete filter kit for engines up to 50hp to 10-micron, 95 litres/hour YMM-2W095-01-00
Complete filter kit for engines between 50hp and 115hp 10-micron, 114 litres /hour YMM-2W114-00-00
Replacement element for filter kit between 50hp and 115hp YMM-2E114-00-00
Complete filter kit for engines over 115hp 10-micron, 227 litres/hour YMM-2W227-01-00
Replacement element for filter kit over 115hp YMM-2E227-01-00
Complete filter kit for twin engine installation or professional Use 10-micron, 341 litres/hour YMM-2W341-01-00
Replacement element for filter kit for twin engine installation or professional use YMM-2E341-01-00
(Note: A filter is never ‘’too big’’. A larger filter will last longer than one which is ‘’just large enough’’)

FUEL FILTERS

Keeping your fuel clean really is an important issue where boating is concerned. Contaminated fuel affects performance and can
increase the wear and tear on your engine. The trouble is that countless small dirt particles are already in the fuel before it gets
anywhere near your boat - and that’s where Yamaha Water Separating Fuel Filters come in. They are designed to be the most efficient
systems available for removing dirt before it can enter the pumps and injection system. Without one of these, dirty, unfiltered fuel could
block the internal fuel passages, causing the engine to run poorly - or even to fail.
Connectors Filters Replacement filters
Instead of the standard 35/27-micron filter, the Yamaha 10-micron filter will protect your engine by removing dirt, water and small
foreign particles. These superior 10-micron filters are strongly recommended for all engines, especially HPDI and EFI models.
CONNECTORS
However, it’s important to choose a fuel filter with the right capacity for your engine and to regularly maintain it, to avoid reduced
performance and engine damage. A simple rule of thumb is to ensure that the litres-per-hour (LPH) of the filter is greater than that of Description Part Number Price
Connectors for YMM-2W095-00-00 and YMM-2W227-00-00 (1/4'' NPT ports):
the engine. This figure can be found in your owner’s manual. Straight fitting for 6.5mm hose YMM-2FS06-00-00
Straight fitting for 8mm hose YMM-2FS08-00-00
Remember, a filter that is too big or too good cannot cause problems, but one that is too small or dirty can restrict fuel flow, possibly Straight fitting for 10mm hose YMM-2FS10-00-00
resulting in engine failure.
Elbow fitting for 8mm hose YMM-2FE08-00-00
Elbow fitting for 10mm hose YMM-2FE10-00-00

Connectors for YMM-2W341-00-00 (3/8'' NPT ports):
Straight fitting for 8mm hose YMM-2SF08-00-00
Straight fitting for 10mm hose YMM-2SF10-00-00
44 45
