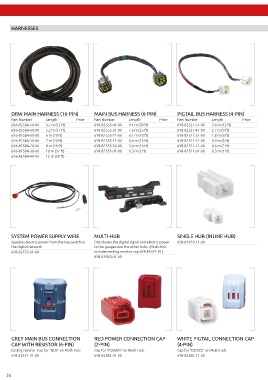

Page 38 - Yamaha Zubehör Aussenbordmotoren 2017
P. 38
Outboard Rigging & Accessories
HARNESSES
DBW MAIN HARNESS (16-PIN) MAIN BUS HARNESS (6-PIN) PIGTAIL BUS HARNESS (4-PIN) DBW 2ND STATION HARNESS 1 DBW 2ND STATION HARNESS 2
Part Number Length Price Part Number Length Price Part Number Length Price Primary harness (3-4-6 pin) Secondary harness (2-12 pin)
6X6-8258A-50-00 3.7 m (12 ft) 6Y8-82553-41-00 9.1 m (30 ft) 6Y8-82521-51-00 3.6 m (12 ft) Part Number Length Price Part Number Length Price
6X6-8258A-60-00 5.2 m (17 ft) 6Y8-82553-31-00 7.6 m (25 ft) 6Y8-82521-41-00 2.7 m (9 ft) 6X6-8258A-G1-00 5 m (16 ft) 6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-00-00 6 m (20 ft) 6Y8-82553-21-00 6.1 m (20 ft) 6Y8-82521-31-00 1.8 m (6 ft) 6X6-8258A-H1-00 8 m (26 ft) 6X6-8258A-D1-00 8 m (26 ft)
6X6-8258A-10-00 7 m (23 ft) 6Y8-82553-11-00 4.6 m (15 ft) 6Y8-82521-21-00 0.9 m (3 ft) 6X6-8258A-J1-00 12 m (38 ft) 6X6-8258A-F1-00 12 m (38 ft)
6X6-8258A-20-00 8 m (26 ft) 6Y8-82553-50-00 3.0 m (10 ft) 6Y8-82521-11-00 0.6 m (2 ft)
6X6-8258A-30-00 10 m (32 ft) 6Y8-82553-01-00 0.3 m (1 ft) 6Y8-82521-01-00 0.3 m (1 ft)
6X6-8258A-40-00 12 m (38 ft)
SYSTEM POWER SUPPLY WIRE MULTI-HUB SINGLE HUB (INLINE HUB) 6Y9 MULTI SENSOR HARNESS 6Y9 DISPLAY CONVERSION DBW MAIN BUS ADAPTOR
Supplies electric power from the key switch to Distributes the digital signal and electric power 6Y8-81920-11-00 To connect multi sensor (6Y9) to Hub HARNESS HARNESS
the digital network to the gauges and the other hubs. (Multi-Hub 6Y9-83553-60-00 To connect 6Y9 LCD colour display to Hub To connect DBW control to Hub
6Y8-83553-01-00 includes ending resistor cap 6Y8-85371-01) 6Y9-83553-40-00 6Y9-83553-00-00
6Y8-81920-01-00
GREY MAIN BUS CONNECTION RED POWER CONNECTION CAP WHITE PIGTAIL CONNECTION CAP 6Y9 FUEL WIRE 6Y9 GPS WIRE 6Y8 GPS/FUEL WIRE
CAP WITH RESISTOR (6-PIN) (2-PIN) (4-PIN) To connect up to 4 tanks to 6Y9 colour display To connect GPS to 6Y9 colour display To connect GPS/Tanks to 6Y8 gauge
Ending resistor. Cap for “BUS” on Multi Hub. Cap for “POWER” on Multi Hub. Cap for “DEVICE” on Multi Hub. 6Y9-8356N-10-00 6Y9-8356N-01-00 6Y8-8356N-01-00
6Y8-85371-01-00 6Y8-82582-01-00 6Y8-82582-11-00
