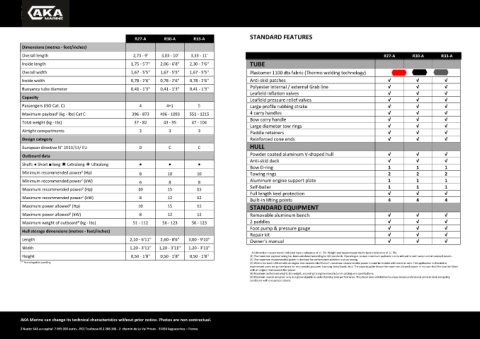

Page 8 - AKA-Marine Catalog 2018

R27-A R30-A R33-A STANDARD FEATURES
Dimensions (metres - feet/inches)

Overall length 2,73 - 9' 3,03 - 10' 3,33 - 11' R27-A R30-A R33-A
Inside length 1,75 - 5'7'' 2,06 - 6'8'' 2,30 - 7'6'' TUBE
Overall width 1,67 - 5'5'' 1,67 - 5'5'' 1,67 - 5'5'' Plastomer 1100 dtx fabric (Thermo welding technology)
Inside width 0,78 - 2'6'' 0,78 - 2'6'' 0,78 - 2'6'' Anti-skid patches √ √ √
Buoyancy tube diameter 0,41 - 1'3'' 0,41 - 1'3'' 0,41 - 1'3'' Polyester internal / external Grab line √ √ √
Leafield inflation valves √ √ √
Capacity Leafield pressure relief valves √ √ √
Passengers (ISO Cat. C) 4 4+1 5 Large profile rubbing strake √ √ √
Maximum payload (kg - lbs) Cat C 396 - 873 496 - 1093 551 - 1215 4 carry handles √ √ √
1
Bow carry handle √ √ √
Total weight (kg - lbs) 37 - 82 43 - 95 47 - 104
Large diameter tow rings √ √ √
Airtight compartments 3 3 3 Paddle retainers √ √ √
Design category Reinforced cone ends √ √ √
European directive N° 2013/53/ EU D C C HULL
Outboard data Powder coated aluminum V-shaped hull √ √ √
√
√
√
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ● ● ● Anti-skid deck
Bow D-ring 1 1 1
Minimum recommended power (Hp) 8 10 10 Towing rings 2 2 2
2
Minimum recommended power (kW) 6 8 8 Aluminum engine support plate 1 1 1
2
Maximum recommended power (Hp) 10 15 15 Self-bailer 1 1 1
2
Full length keel protection √ √ √
Maximum recommended power (kW) 8 12 12 Built-in lifting points 4 4 4
2
3
Maximum power allowed (Hp) 10 15 15 STANDARD EQUIPMENT
3
Maximum power allowed (kW) 8 12 12 Removable aluminum bench √ √ √
Maximum weight of outboard (kg - lbs) 51 - 112 56 - 123 56 - 123 2 paddles √ √ √
4
Foot pump & pressure gauge √ √ √
Hull storage dimensions (metres - feet/inches) Repair kit √ √ √
Length 2,10 - 6'11'' 2,60 - 8'6'' 3,00 - 9'10'' Owner’s manual √ √ √
Width 1,20 - 3'11'' 1,20 - 3'11'' 1,20 - 3'11''
All dimension measurments indicated have a tolerance of +/- 3%. Weight and speed measurments have a tolerance of +/- 5%.
Height 0,50 - 1'8'' 0,50 - 1'8'' 0,50 - 1'8'' (1) The maximum payload rating has been calculated according to ISO standards. Operating at or near maximum payloads is only advised in calm water and at reduced speeds.
(2) The maximum recommended power is destined for performance activities such as towing.
** Homologation pending (3) Where the boat is fitted with an engine that exceeds Aka Marine’s maximum recommended power it must be treated with extreme care. This application is directed at
experienced users using their boats for very specific purposes (carrying heavy loads, etc.). The capacity plate shows the maximum allowed power. In no case shall the boat be fitted
with an engine that exceeds this power.
(4) Maximum authorized weight: Dry weight, according to engine manufacturers catalogue’s specifications.
(5) Maximum speeds are given only as a general guide to understanding boat performance. They have been established by experienced professional pilots in ideal navigating
conditions with one person aboard.

AKA Marine can change its technical characteristics without prior notice. Photos are non contractual.
