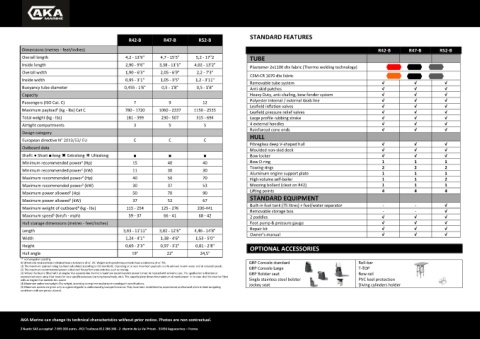

Page 10 - AKA-Marine Catalog 2018

R42-B R47-B R52-B STANDARD FEATURES

Dimensions (metres - feet/inches) R42-B R47-B R52-B
Overall length 4,2 - 13'9" 4,7 - 15'5" 5,2 - 17"2 TUBE
Inside length 2,90 - 9'6'' 3,38 - 11'1" 4,02 - 13'2"
Plastomer 2x1100 dtx fabric (Thermo welding technology)
Overall width 1,90 - 6'3" 2,05 - 6'9" 2,2 - 7'3"
CSM-CR 1670 dtx fabric
Inside width 0,95 - 3'1" 1,05 - 3'5" 1,2 - 3'11" Removable tube system √ √ √
Buoyancy tube diameter 0,455 - 1'6" 0,5 - 1'8" 0,5 - 1'8" Anti-skid patches √ √ √
Capacity Heavy Duty, anti-chafing, bow fender system √ √ √
Passengers (ISO Cat. C) 7 9 12 Polyester internal / external Grab line √ √ √
√
Leafield inflation valves
√
√
Maximum payload (kg - lbs) Cat C 780 - 1720 1060 - 2337 1150 - 2535 Leafield pressure relief valves √ √ √
1
Total weight (kg - lbs) 181 - 399 230 - 507 315 - 694 Large profile rubbing strake √ √ √
Airtight compartments 3 5 5 4 external handles √ √ √
Reinforced cone ends √ √ √
Design category
European directive N° 2013/53/ EU C C C HULL
Outboard data Fibreglass deep V-shaped hull √ √ √
Moulded non-skid deck
√
√
√
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ■ ■ ■ Bow locker √ √ √
Minimum recommended power (Hp) 15 40 40 Bow D-ring 1 1 1
2
Towing rings 2 2 2
Minimum recommended power (kW) 11 30 30 Aluminum engine support plate 1 1 1
2
Maximum recommended power (Hp) 40 50 70 High volume self-bailer 1 1 2
2
2
Maximum recommended power (kW) 30 37 53 Mooring bollard (cleat on R42) 1 1 1
3
Maximum power allowed (Hp) 50 70 90 Lifting points 4 4 4
3
Maximum power allowed (kW) 37 52 67 STANDARD EQUIPMENT
Maximum weight of outboard (kg - lbs) 115 - 254 125 - 276 200-441 Built-in fuel tank (75 litres) + fuel/water separator - - √
4
Removable storage box - - √
5
Maximum speed (km/h - mph) 59 - 37 66 - 41 68 - 42 2 paddles √ √ √
Hull storage dimensions (metres - feet/inches) Foot pump & pressure gauge √ √ √
Length 3,63 - 11'11" 3,82 - 12'6" 4,46 - 14'8" Repair kit √ √ √
Owner’s manual √ √ √
Width 1,24 - 4'1" 1,38 - 4'6" 1,53 - 5'0"

Height 0,69 - 2'3" 0,97 - 3'2" 0,81 - 2'8" OPTIONAL ACCESSORIES
Hull angle 19° 22° 24,5°
** Homologation pending
All dimension measurments indicated have a tolerance of +/- 3%. Weight and speed measurments have a tolerance of +/- 5%. GRP Console standard Roll-bar
(1) The maximum payload rating has been calculated according to ISO standards. Operating at or near maximum payloads is only advised in calm water and at reduced speeds.
(2) The maximum recommended power is destined for performance activities such as towing. GRP Console Large T-TOP
(3) Where the boat is fitted with an engine that exceeds Aka Marine’s maximum recommended power it must be treated with extreme care. This application is directed at GRP Bolster seat Bow rail
experienced users using their boats for very specific purposes (carrying heavy loads, etc.). The capacity plate shows the maximum allowed power. In no case shall the boat be fitted
with an engine that exceeds this power. Single stainless steel bolster PVC keel protection
(4) Maximum authorized weight: Dry weight, according to engine manufacturers catalogue’s specifications. Jockey seat Diving cylinders holder
(5) Maximum speeds are given only as a general guide to understanding boat performance. They have been established by experienced professional pilots in ideal navigating
conditions with one person aboard.

AKA Marine can change its technical characteristics without prior notice. Photos are non contractual.
