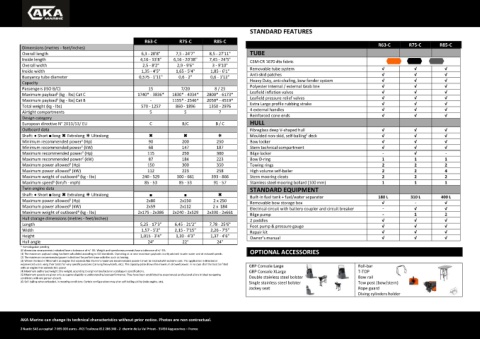

Page 12 - AKA-Marine Catalog 2018

STANDARD FEATURES

R63-C R75-C R85-C
R63-C R75-C R85-C
Dimensions (metres - feet/inches)
Overall length 6,3 - 20'8" 7,5 - 24'7'' 8,5 - 27'11" TUBE
Inside length 4,16 - 13'8" 6,16 - 20'38'' 7,45 - 24'5" CSM-CR 1670 dtx fabric
Overall width 2,5 - 8'2" 2,9 - 9'6'' 3 - 9'10"
Inside width 1,35 - 4'5" 1,65 - 5'4'' 1,85 - 6'1" Removable tube system √ √ √
Buoyancy tube diameter 0,575 - 1'11" 0,6 - 2'' 0,6 - 1'12" Anti-skid patches √ √ √
Capacity Heavy Duty, anti-chafing, bow fender system √ √ √
Passengers (ISO B/C) 15 7/20 8 / 25 Polyester internal / external Grab line √ √ √
√
√
√
Maximum payload (kg - lbs) Cat C 1740* - 3836* 1830* - 4034* 2800* - 6173* Leafield inflation valves
1
Maximum payload (kg - lbs) Cat B - 1155* - 2546* 2050* - 4519* Leafield pressure relief valves √ √ √
1
Total weight (kg - lbs) 570 - 1257 860 - 1896 1350 - 2976 Extra Large profile rubbing strake √ √ √
Airtight compartments 5 5 7 4 external handles √ √ √
√
√
√
Design category Reinforced cone ends
European directive N° 2013/53/ EU C B/C B / C HULL
Outboard data Fibreglass deep V-shaped hull √ √ √
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ✖ ✖ ❋ Moulded non-skid, self-bailing deck √ √ √
6
2
Minimum recommended power (Hp) 90 200 250 Bow locker √ √ √
2
Minimum recommended power (kW) 68 147 187 Stern technical compartment √ √ √
Maximum recommended power (Hp) 115 250 300 Bilge locker - √ -
2
Maximum recommended power (kW) 87 184 223 Bow D-ring 1 1 1
2
3
Maximum power allowed (Hp) 150 300 350 Towing rings 2 2 2
3
Maximum power allowed (kW) 112 223 258 High volume self-bailer 2 2 4
Maximum weight of outboard (kg - lbs) 240 - 529 300 - 661 393 - 866 Stern mooring cleats 2 2 2
4
Maximum speed (km/h - mph) 85 - 53 85 - 53 91 - 57 Stainless steel mooring bollard (100 mm) 1 1 1
5
Twin-engine data STANDARD EQUIPMENT
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ■ ■ ✖ Built-in fuel tank + fuel/water separator 180 L 310 L 400 L
Maximum power allowed (Hp) 2x80 2x150 2 x 250 Removable bow storage box √ - √
3
3
Maximum power allowed (kW) 2x59 2x112 2 x 184 Electrical circuit with battery coupler and circuit breaker - √ √
4
Maximum weight of outboard (kg - lbs) 2x175 - 2x386 2x240 - 2x529 2x300 - 2x661 Bilge pump - 1 2
Hull storage dimensions (metres - feet/inches) 2 paddles √ √ √
Length 5,25 - 17'3" 6,45 - 21'2'' 7,78 - 25'6" Foot pump & pressure gauge √ √ √
Width 1,57 - 5'2" 2,15 - 7'15'' 2,26 - 7'5" Repair kit √ √ √
Height 1,015 - 3'4" 1,30 - 4'3'' 1,37 - 4'6" Owner’s manual √ √ √
Hull angle 24° 22° 24°
* Homologation pending
All dimension measurments indicated have a tolerance of +/- 3%. Weight and speed measurments have a tolerance of +/- 5%. OPTIONAL ACCESSORIES
(1) The maximum payload rating has been calculated according to ISO standards. Operating at or near maximum payloads is only advised in calm water and at reduced speeds.
(2) The maximum recommended power is destined for performance activities such as towing.
(3) Where the boat is fitted with an engine that exceeds Aka Marine’s maximum recommended power it must be treated with extreme care. This application is directed at
experienced users using their boats for very specific purposes (carrying heavy loads, etc.). The capacity plate shows the maximum allowed power. In no case shall the boat be fitted GRP Console Large Roll-bar
with an engine that exceeds this power.
(4) Maximum authorized weight: Dry weight, according to engine manufacturers catalogue’s specifications. GRP Console XLarge T-TOP
(5) Maximum speeds are given only as a general guide to understanding boat performance. They have been established by experienced professional pilots in ideal navigating
conditions with one person aboard. Double stainless steel bolster Bow rail
(6) Self-bailing when unloaded, in mooring conditions. Certain configurations may alter self-bailing ability (twin engine, etc). Single stainless steel bolster Tow post (bow/stern)
Jockey seat Rope guard
Diving cylinders holder

AKA Marine can change its technical characteristics without prior notice. Photos are non contractual.
