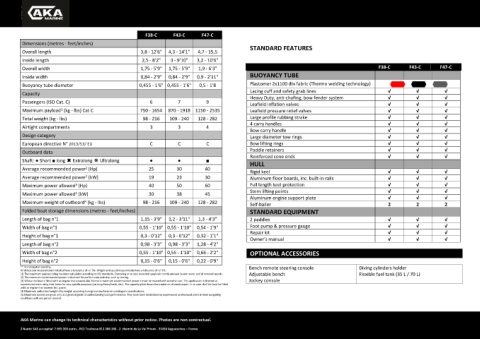

Page 6 - AKA-Marine Catalog 2018

F38-C F43-C F47-C
Dimensions (metres - feet/inches)
Overall length 3,8 - 12'6" 4,3 - 14'1" 4,7 - 15,5 STANDARD FEATURES

Inside length 2,5 - 8'2" 3 - 9'10" 3,2 - 10'6"
Overall width 1,75 - 5'9" 1,75 - 5'9" 1,9 - 6'3" F38-C F43-C F47-C
Inside width 0,84 - 2'9" 0,84 - 2'9" 0,9 - 2'11" BUOYANCY TUBE
Buoyancy tube diameter 0,455 - 1'6" 0,455 - 1'6" 0,5 - 1'8 Plastomer 2x1100 dtx fabric (Thermo welding technology)
Lacing cuff and safety grab lines √ √ √
Capacity
Heavy Duty, anti-chafing, bow fender system √ √ √
Passengers (ISO Cat. C) 6 7 9 Leafield inflation valves √ √ √
Maximum payload (kg - lbs) Cat C 750 - 1654 870 - 1918 1150 - 2535 Leafield pressure relief valves √ √ √
1
Total weight (kg - lbs) 98 - 216 109 - 240 128 - 282 Large profile rubbing strake √ √ √
4 carry handles √ √ √
Airtight compartments 3 3 4
Bow carry handle √ √ √
Design category Large diameter tow rings √ √ √
European directive N° 2013/53/ EU C C C Bow lifting rings √ √ √
Outboard data Paddle retainers √ √ √
Reinforced cone ends √ √ √
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ● ● ■ HULL
2
Average recommended power (Hp) 25 30 40
Rigid keel √ √ √
Average recommended power (kW) 19 23 30 Aluminum floor boards, inc. built-in rails √ √ √
2
Maximum power allowed (Hp) 40 50 60 Full length keel protection √ √ √
3
Stern lifting points √ √ √
Maximum power allowed (kW) 30 38 45
3
Aluminum engine support plate √ √ √
4
Maximum weight of outboard (kg - lbs) 98 - 216 109 - 240 128 - 282 Self-bailer 2 2 2
Folded boat storage dimensions (metres - feet/inches) STANDARD EQUIPMENT
Length of bag n°1 1,15 - 3'9" 1,2 - 3'11" 1,3 - 4'3" 2 paddles √ √ √
Width of bag n°1 0,55 - 1'10" 0,55 - 1'10" 0,54 - 1'9" Foot pump & pressure gauge √ √ √
Repair kit √ √ √
Height of bag n°1 0,3 - 0'12" 0,3 - 0'12" 0,32 - 1'1"
Owner’s manual √ √ √
Length of bag n°2 0,98 - 3'3" 0,98 - 3'3" 1,28 - 4'2"
Width of bag n°2 0,55 - 1'10" 0,55 - 1'10" 0,66 - 2'2" OPTIONAL ACCESSORIES
Height of bag n°2 0,15 - 0'6" 0,15 - 0'6" 0,22 - 0'9"
** Homologation pending Bench remote steering console Diving cylinders holder
All dimension measurments indicated have a tolerance of +/- 3%. Weight and speed measurments have a tolerance of +/- 5%.
(1) The maximum payload rating has been calculated according to ISO standards. Operating at or near maximum payloads is only advised in calm water and at reduced speeds. Adjustable bench Flexible fuel tank (35 L / 70 L)
(2) The maximum recommended power is destined for performance activities such as towing.
(3) Where the boat is fitted with an engine that exceeds Aka Marine’s maximum recommended power it must be treated with extreme care. This application is directed at Jockey console
experienced users using their boats for very specific purposes (carrying heavy loads, etc.). The capacity plate shows the maximum allowed power. In no case shall the boat be fitted
with an engine that exceeds this power.
(4) Maximum authorized weight: Dry weight, according to engine manufacturers catalogue’s specifications.
(5) Maximum speeds are given only as a general guide to understanding boat performance. They have been established by experienced professional pilots in ideal navigating
conditions with one person aboard.

AKA Marine can change its technical characteristics without prior notice. Photos are non contractual.
