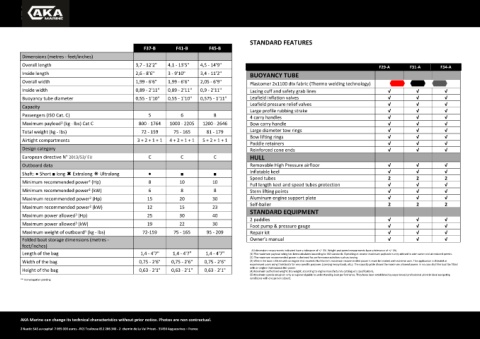

Page 4 - AKA-Marine Catalog 2018

STANDARD FEATURES
F37-B F41-B F45-B
Dimensions (metres - feet/inches)
Overall length 3,7 - 12'2" 4,1 - 13'5" 4,5 - 14'9" F29-A F31-A F34-A
Inside length 2,6 - 8'6" 3 - 9'10" 3,4 - 11'2" BUOYANCY TUBE
Overall width 1,99 - 6'6" 1,99 - 6'6" 2,05 - 6'9" Plastomer 2x1100 dtx fabric (Thermo welding technology)
Inside width 0,89 - 2'11" 0,89 - 2'11" 0,9 - 2'11" Lacing cuff and safety grab lines √ √ √
Buoyancy tube diameter 0,55 - 1'10" 0,55 - 1'10" 0,575 - 1'11" Leafield inflation valves √ √ √
Leafield pressure relief valves √ √ √
Capacity
Large profile rubbing strake √ √ √
Passengers (ISO Cat. C) 5 6 8 4 carry handles √ √ √
1
Maximum payload (kg - lbs) Cat C 800 - 1764 1000 - 2205 1200 - 2646 Bow carry handle √ √ √
Total weight (kg - lbs) 72 - 159 75 - 165 81 - 179 Large diameter tow rings √ √ √
Bow lifting rings √ √ √
Airtight compartments 3 + 2 + 1 + 1 4 + 2 + 1 + 1 5 + 2 + 1 + 1
Paddle retainers √ √ √
Design category Reinforced cone ends √ √ √
European directive N° 2013/53/ EU C C C HULL
Outboard data Removable High Pressure airfloor √ √ √
Shaft: ● Short ■ long ✖ Extralong ❋ Ultralong ● ■ ■ Inflatable keel √ √ √
Speed tubes 2 2 2
2
Minimum recommended power (Hp) 8 10 10 Full length keel and speed tubes protection √ √ √
Minimum recommended power (kW) 6 8 8 Stern lifting points √ √ √
2
Maximum recommended power (Hp) 15 20 30 Aluminum engine support plate √ √ √
2
Self-bailer 2 2 2
Maximum recommended power (kW) 12 15 23
2
Maximum power allowed (Hp) 25 30 40 STANDARD EQUIPMENT
3
2 paddles √ √ √
3
Maximum power allowed (kW) 19 22 30 Foot pump & pressure gauge √ √ √
Maximum weight of outboard (kg - lbs) 72-159 75 - 165 95 - 209 Repair kit √ √ √
4
Folded boat storage dimensions (metres - Owner’s manual √ √ √
feet/inches)
Length of the bag 1,4 - 4'7" 1,4 - 4'7" 1,4 - 4'7" All dimension measurments indicated have a tolerance of +/- 3%. Weight and speed measurments have a tolerance of +/- 5%.
(1) The maximum payload rating has been calculated according to ISO standards. Operating at or near maximum payloads is only advised in calm water and at reduced speeds.
(2) The maximum recommended power is destined for performance activities such as towing.
Width of the bag 0,75 - 2'6" 0,75 - 2'6" 0,75 - 2'6" (3) Where the boat is fitted with an engine that exceeds Aka Marine’s maximum recommended power it must be treated with extreme care. This application is directed at
experienced users using their boats for very specific purposes (carrying heavy loads, etc.). The capacity plate shows the maximum allowed power. In no case shall the boat be fitted
Height of the bag 0,63 - 2'1" 0,63 - 2'1" 0,63 - 2'1" with an engine that exceeds this power.
(4) Maximum authorized weight: Dry weight, according to engine manufacturers catalogue’s specifications.
(5) Maximum speeds are given only as a general guide to understanding boat performance. They have been established by experienced professional pilots in ideal navigating

** Homologation pending conditions with one person aboard.

AKA Marine can change its technical characteristics without prior notice. Photos are non contractual.
