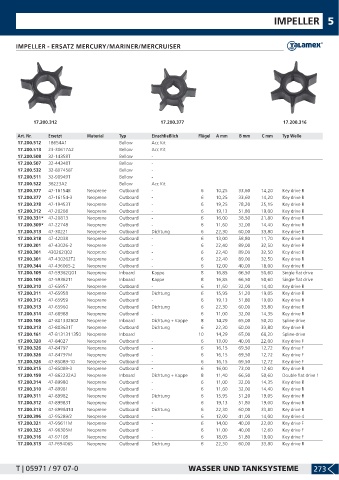

Page 275 - Lankhorst Katalog 2021/2022

IMPELLER 5

IMPELLER - ERSATZ MERCURY/MARINER/MERCRUISER

17.200.312 17.200.377 17.200.316

Art. Nr. Ersetzt Material Typ Einschließlich Flügel A mm B mm C mm Typ Welle
17.200.512 18654A1 Bellow Acc Kit
17.200.513 23-30617A2 Bellow Acc Kit
17.200.508 32-14358T Bellow -
17.200.507 32-44348T Bellow -
17.200.532 32-807458T Bellow -
17.200.511 32-90949T Bellow -
17.200.522 36223A2 Bellow Acc Kit
17.200.377 47-16154B Neoprene Outboard - 6 10,25 33,60 14,20 Key drive R
17.200.377 47-16154-3 Neoprene Outboard - 6 10,25 33,60 14,20 Key drive R
17.200.378 47-19453T Neoprene Outboard - 6 19,25 78,20 25,15 Key drive R
17.200.312 47-20268 Neoprene Outboard - 6 19,13 51,80 19,00 Key drive R
17.200.331* 47-20813 Neoprene Outboard - 6 16,00 38,50 21,80 Key drive R
17.200.309* 47-22748 Neoprene Outboard - 6 11,60 32,00 14,40 Key drive R
17.200.313 47-30221 Neoprene Outboard Dichtung 6 22,30 60,00 33,80 Key drive R
17.200.318 47-42038 Neoprene Outboard - 6 13,00 58,80 11,70 Key drive R
17.200.301 47-43026-2 Neoprene Outboard - 6 22,40 89,00 32,50 Key drive R
17.200.301 430262Q02 Neoprene Outboard - 6 22,40 89,00 32,50 Key drive R
17.200.301 47-430262T2 Neoprene Outboard - 6 22,40 89,00 32,50 Key drive R
17.200.344 47-436065-2 Neoprene Outboard - 6 12,00 40,00 18,00 Key drive R
17.200.109 47-59362Q01 Neoprene Inboard Kappe 8 16,85 66,50 50,60 Single flat drive
17.200.109 47-59362T1 Neoprene Inboard Kappe 8 16,85 66,50 50,60 Single flat drive
17.200.310 47-65957 Neoprene Outboard - 6 11,60 32,00 14,40 Key drive R
17.200.311 47-65958 Neoprene Outboard Dichtung 6 15,95 51,20 19,05 Key drive R
17.200.312 47-65959 Neoprene Outboard - 6 19,13 51,80 19,00 Key drive R
17.200.313 47-65960 Neoprene Outboard Dichtung 6 22,30 60,00 33,80 Key drive R
17.200.314 47-68988 Neoprene Outboard - 6 11,00 32,00 14,35 Key drive R
17.200.106 47-801332602 Neoprene Inboard Dichtung + Kappe 8 14,29 65,00 50,20 Spline drive
17.200.313 47-803631T Neoprene Outboard Dichtung 6 22,30 60,00 33,80 Key drive R
17.200.161 47-8131311350 Neoprene Inboard 10 14,29 65,00 68,20 Spline drive
17.200.320 47-84027 Neoprene Outboard - 6 13,00 40,00 22,00 Key drive F
17.200.326 47-84797 Neoprene Outboard - 6 16,15 69,50 12,72 Key drive F
17.200.326 47-84797M Neoprene Outboard - 6 16,15 69,50 12,72 Key drive F
17.200.326 47-85089-10 Neoprene Outboard - 6 16,15 69,50 12,72 Key drive F
17.200.315 47-85089-3 Neoprene Outboard - 6 16,00 73,00 12,60 Key drive R
17.200.159 47-862232A2 Neoprene Inboard Dichtung + Kappe 8 11,40 66,50 50,60 Double flat drive 1
17.200.314 47-89980 Neoprene Outboard - 6 11,00 32,00 14,35 Key drive R
17.200.310 47-89981 Neoprene Outboard - 6 11,60 32,00 14,40 Key drive R
17.200.311 47-89982 Neoprene Outboard Dichtung 6 15,95 51,20 19,05 Key drive R
17.200.312 47-89983T Neoprene Outboard - 6 19,13 51,80 19,00 Key drive R
17.200.313 47-89984T4 Neoprene Outboard Dichtung 6 22,30 60,00 33,80 Key drive R
17.200.396 47-95289/2 Neoprene Outboard - 6 12,00 41,00 14,00 Key drive 4
17.200.321 47-95611M Neoprene Outboard - 6 14,00 40,00 22,00 Key drive F
17.200.325 47-96305M Neoprene Outboard - 6 11,00 40,00 12,60 Key drive F
17.200.316 47-97108 Neoprene Outboard - 6 18,05 51,80 19,00 Key drive F
17.200.313 47-F694065 Neoprene Outboard Dichtung 6 22,30 60,00 33,80 Key drive R

T | 05971 / 97 07-0 WASSER UND TANKSYSTEME 273
