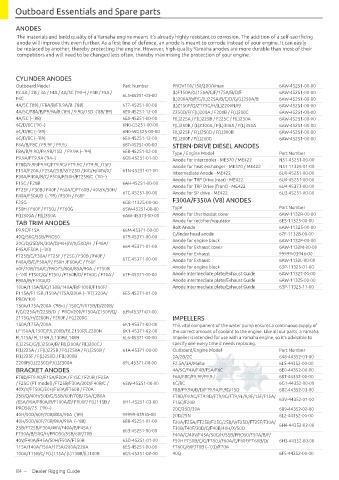

Page 86 - Yamaha Marine Zubehör Katalog 2020

Outboard Essentials and Spare parts

ANODES
The materials and build quality of a Yamaha engine means it’s already highly resistant to corrosion. The addition of a self-sacrificing
anode will improve this even further. As a first line of defence, an anode is meant to corrode instead of your engine. It can easily
be replaced by another, thereby protecting the engine. However, high-quality Yamaha anodes are more durable than most of their
competitors and will need to be changed less often, thereby maximising the protection of your engine.

CYLINDER ANODES CYLINDER ANODES
Outboard Model Part Number PROV100/150/200/Vmax 6AW-45251-00-00
F2.5A / 2B / 3A / F4A / 4A/5C (‘90--) / F4B / F5A / (L)F150A/(L)150A/C/F/175A/B/D/F 6AW-45251-00-00
F6C 6L5-45251-03-00 (L)200A/B/F/G/(L)225A/B/C/D/G/(L)250A/B 6AW-45251-00-00
4A/5C (‘89) / F8A/B/F9.9A/B (‘88) 677-45251-00-00 (L)Z150P/Q/Z175G/H/(L)Z200N/P/ 6AW-45251-00-00
4A/5C/F8A/B/F9,9A/B (‘89) / 9.9D/15D (‘88/’89) 6E0-45251-12-00 Z250D/F/ F(L)200A / F200B / F(L)200C 6AW-45251-00-00
4A/5C (--’88) 6E0-45251-00-00 F(L)225A / F(L)225B / F225C / F(L)250A 6AW-45251-00-00
6C/D/8C (‘90--) 6N0-G5251-00-00 F(L)250B / (L)Z300A / F(L)300A / F(L)350A 6AW-45251-00-00
6C/D/8C (--’89) 6N0-WG525-00-00 F(L)225F / F(L)250D / F(L)300B 6AW-45251-00-00
6C/D/8C (--’89) 6E0-45251-12-00 F(L)200F / F(L)200G 6AW-45251-00-00
F6A/B/F8C / F9,9F / F9,9J 68T-45251-00-00 STERN-DRIVE DIESEL ANODES
F8A/B/9.9D/F9.9B/15D / F9.9A (--’94) 6E8-45251-02-00 Type / Engine Model Part Number
F9.9A/FT9.9A (‘94--) 6G8-45251-01-00 Anode for intercooler - ME370 / ME422 N51-45251-00-00
FT8D/9.9F/F9.9C/FT9.9D/ FT9,9G / FT9,9L /15F/ Anode for heat exchanger - ME370 / ME422 N51-11325-01-00
F15A/F20A / F25A/25B/V/ F25D /30G/H/40V/X/ 61N-45251-01-00 intermediate Anode - ME422 6U0-45251-00-00
F30A/F40A/B/C/ F50A/F/50H/FT25B/C (‘00--) Anode for TRP Drive (rear) - ME422 6U4-45251-00-00
F15C / F20B 6AH-45251-00-00 Anode for TRP Drive (front) - ME422 6U4-45373-00-00
FT25F / F30B / F40F / F60A/C/FT60B / 40V/X/50H/ 67C-45251-00-00 Anode for SP drive - ME422 6U3-45251-00-00
F40A/F50A/B (--’99) / F50H / F60F
F25G 6G8-11325-00-00 F300A/F350A (V8) ANODES
F50H / F60F / FT50J / FT60G 65W-45251-00-00 Type Part Number
F(L)300A / F(L)350A 6AW-45373-00-00 Anode for thermostat cover 6AW-1132R-00-00
TAB TRIM ANODES Anode for rectifier/regulator 6E5-11325-00-00
F9.9C/F15A 66M-45371-00-00 Bolt Anode 6AW-11325-00-00
40Q/50G/55B/PRO50 679-45371-00-00 Cylinder head anode 67F-11328-00-00
20C/D/25D/N/30A/D/40H/V/X/50D/H / F40A/ 664-45371-01-00 Anode for engine block 6AW-1132P-00-00
F45A/F50A (--’00) Anode for Exhaust cover 6AW-1132M-00-00
FT25B/C/F30A/ FT25F / F25G / F30B / F40F / 67C-45371-00-00 Anode for Exhaust 99999-03946-00
F40A/B/C/F50A/F/ F50H /F60A/C / F60F Anode for Exhaust 6AW-1132L-00-00
60F/70B/75A/C/PRO75/80A/85A/90A / FT50B Anode for engine block 63P-11325-01-00
(--’00) FT50C/G/ FT50J /FT60B/D/ FT60G / F70A / 67F-45371-00-00 Anode intermediate plate/Exhaust Guide 6AW-1132T-00-00
F80A/B/F100A/D Anode intermediate plate/Exhaust Guide 6AW-1132S-00-00
100A/115A/B/C/130B/140A/B/F100B/F100F/ Anode intermediate plate/Exhaust Guide 63P-11325-11-00
F115A/F115B /150A/175A/200A (--’97) 220A/ 6E5-45371-01-00
PROV100
150A/175A/200A (‘98--) / 150C/F/175B/D/200B/
F/G/225A/F/225B/D / PROV200/F150A/Z150P/Q/ 6J9-45371-01-00
Z175G/H/Z200N / F200F / F(L)200G IMPELLERS
150A/175A/200A 6K1-45371-00-00 This vital component of the water pump ensures a continuous supply of
LF150A/L150C/F/L200B/F/LZ150P/LZ200N 6K1-45371-02-00 the correct amount of coolant to the engine. Like all our parts, a Yamaha
FL115A/ FL115B /L130B/L140B 6L6-45371-00-00 Impeller is intended for use with a Yamaha engine, so it’s advisable to
(L)225C/G/(L)250A/B/ F(L)200A/ F(L)200C / specify one every time it needs replacing.
F(L)225A / / F(L)225B / F(L)250A / F(L)250B / 61A-45371-00-00 Outboard/Engine Model Part Number
F(L)225F / F(L)250D / F(L)300B 2A/2B/2C 646-44352-01-00
Z200P/(L)Z250D/F/(L)Z300A 69L-45371-00-00 F2.5A/3A/Malta 6L5-44352-00-00
BRACKET ANODES 4A/5C/F4A/F4B/F5A/F6C 6E0-44352-00-00
FT8D/FT9.9D/F15A/F20A / F15C / F20B / F25A F6A/F8C/F9,9F/F9,9J 68T-44352-00-00
/ F25G (PT model) /FT25B/F30A/30D/F40B/C / 65W-45251-00-00 6C/8C 6G1-44352-00-00
40X/V/FT50C/50H/F60A/FT60B / F70A F8B/F9.9A/B/D/FT9.9A/9,9D/15D 682-44352-03-00
25B/Q/40H/50D/G/55B/60F/70B/75A/C/80A FT8D/F9.9C/FT9.9D/FT9,9G/FT9,9L/9,9F/15F/F15A/
/85A/90A/F80A/B/F100A/D/ F100F/ F(L)115B / 6H1-45251-03-00 F15C/F20B 63V-44352-01-00
PRO50/75 (‘90--) 20C/25D/30A 689-44352-02-00
40H/50D/60F/70B/80A/90A (‘89) 99999-03935-00 20D/25N 6L2-44352-00-00
40H/50D/60F/70B/80A/90A (--’88) 688-45251-01-00 F20A/F25A/FT25B/F25G/25B/V/F25D/FT25F/F30A/
25B/FT25B/F30A/40V/F40A/B/F45A / 663-45251-00-00 F30B/F40F/30D/G/F40B/40H/X/50D 6H4-44352-02-00
FT50A/B/50G/H/PRO50/55B/60F/70B F40A/C/40V/F45A/50G/H/55B/PRO50/F50A/B/F/
40V/F40A/F45A/50H/F50A/FT50B 63D-45251-01-00 F50H FT50B/C/G/FT50J/F60A/C/F60F/FT60B/D/ 6H3-44352-00-00
115A/140A/150A/175A/200A/220A 6E5-45251-00-00 FT60G/60F/70B (--’03)/F70A
100A/115B/C/ F(L)115A/ (L)130B/(L)140B 6G5-45251-02-00 40Q 6F5-44352-00-00

84 – Dealer Rigging Guide
