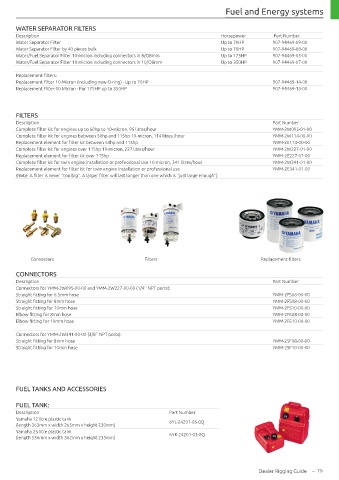

Page 81 - Yamaha Marine Zubehör Katalog 2020

Fuel and Energy systems

WATER SEPARATOR FILTERS
Description Horsepower Part Number
Water Separator Filter Up to 70HP 907-94469-09-00
Water Separator Filter by 40 pieces bulk Up to 70HP 907-94469-08-00
Water/Fuel Separator Filter 10-micron including connectors in 8/O8mm Up to 175HP 907-94469-05-00
Water/Fuel Separator Filter 10-micron including connectors in 10/O8mm Up to 350HP 907-94469-07-00

Replacement filters:
Replacement Filter 10-Micron (including new O-ring) - Up to 70HP 907-94469-14-00
Replacement Filter-10 Micron - For 175HP up to 350HP 907-94469-13-00

FILTERS
Description Part Number
Complete filter kit for engines up to 50hp to 10-micron, 95 litres/hour YMM-2W095-01-00
Complete filter kit for engines between 50hp and 115hp 10-micron, 114 litres /hour YMM-2W114-00-00
Replacement element for filter kit between 50hp and 115hp YMM-2E114-00-00
Complete filter kit for engines over 115hp 10-micron, 227 litres/hour YMM-2W227-01-00
Replacement element for filter kit over 115hp YMM-2E227-01-00
Complete filter kit for twin engine installation or professional Use 10-micron, 341 litres/hour YMM-2W341-01-00
Replacement element for filter kit for twin engine installation or professional use YMM-2E341-01-00
(Note: A filter is never ''too big''. A larger filter will last longer than one which is ''just large enough'')

Connectors Filters Replacement filters

CONNECTORS
Description Part Number
Connectors for YMM-2W095-00-00 and YMM-2W227-00-00 (1/4'' NPT ports):
Straight fitting for 6.5mm hose YMM-2FS06-00-00
Straight fitting for 8mm hose YMM-2FS08-00-00
Straight fitting for 10mm hose YMM-2FS10-00-00
Elbow fitting for 8mm hose YMM-2FE08-00-00
Elbow fitting for 10mm hose YMM-2FE10-00-00

Connectors for YMM-2W341-00-00 (3/8'' NPT ports):
Straight fitting for 8mm hose YMM-2SF08-00-00
Straight fitting for 10mm hose YMM-2SF10-00-00

FUEL TANKS AND ACCESSORIES

FUEL TANK:
Description Part Number
Yamaha 12 litre plastic tank 6YL-24201-05-0Q
(length 363mm x width 265mm x height 230mm)
Yamaha 25 litre plastic tank 6YK-24201-03-0Q
(length 536mm x width 362mm x height 233mm)

Dealer Rigging Guide – 79
