Outboard Essentials and Spare parts

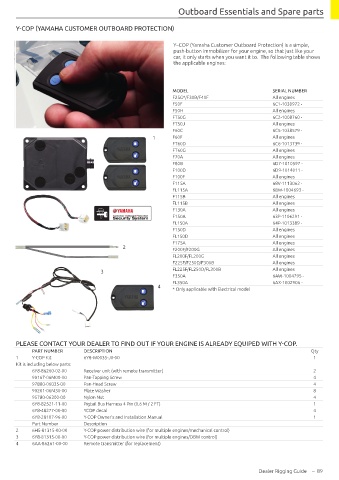

Y-COP (YAMAHA CUSTOMER OUTBOARD PROTECTION)

Y–COP (Yamaha Customer Outboard Protection) is a simple,
push-button immobilizer for your engine, so that just like your
car, it only starts when you want it to. The following table shows
the applicable engines:

MODEL SERIAL NUMBER
F25G*/F30B/F40F All engines
F50F 6C1-1030972 -
F50H All engines
FT50G 6C2-1008760 -
FT50J All engines
F60C 6C5-1038579 -
1 F60F All engines
FT60D 6C6-1013739 -
FT60G All engines
F70A All engines
F80B 6D7-1010597 -
F100D 6D9-1014011 -
F100F All engines
F115A 68V-1113062 -
FL115A 68W-1004693 -
F115B All engines
FL115B All engines
F130A All engines
F150A 63P-1106291 -
FL150A 64P-1013389 -
F150D All engines
FL150D All engines
F175A All engines
2
F200F/F200G All engines
FL200F/FL200G All engines
F225F/F250D/F300B All engines
3 FL225F/FL250D/FL300B All engines
F350A 6AW-1004795 -
FL350A 6AX-1002906 -
4 * Only applicable with Electrical model

PLEASE CONTACT YOUR DEALER TO FIND OUT IF YOUR ENGINE IS ALREADY EQUIPED WITH Y-COP.
PART NUMBER DESCRIPTION Qty
1 Y-COP Kit 6Y8-W0035-J0-00 1
Kit is including below parts:
6Y8-86260-02-00 Receiver unit (with remote transmitter) 2
90167-06M00-00 Pan-Tapping Screw 4
97880-06035-00 Pan-Head Screw 4
90201-06M30-00 Plate Washer 8
95780-06300-00 Nylon Nut 4
6Y8-82521-11-00 Pigtail Bus Harness 4 Pin (0.6 M / 2 FT) 1
6Y8-48277-00-00 YCOP decal 4
6Y8-28107-96-00 Y-COP Owner's and Installation Manual 1
Part Number Description
2 6H5-81315-00-00 Y-COP power distribution wire (for multiple engines/mechanical control)
3 6Y8-81315-00-00 Y-COP power distribution wire (for multiple engines/DBW control)
4 6AA-86261-00-00 Remote transmitter (for replacement)

Dealer Rigging Guide – 89
