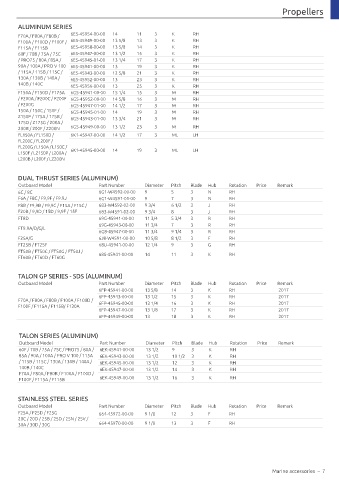

Page 9 - Yamaha Marine Marine Zubehör 2019
P. 9
Propellers
ALUMINUM SERIES
F70A / F80A / F80B / 6E5-45954-00-00 14 11 3 K RH
F100A / F100D / F100F / 6E5-45949-00-00 13 5/8 13 3 K RH
F115A / F115B 6E5-45958-00-00 13 5/8 14 3 K RH
60F / 70B / 75A / 75C 6E5-45947-00-00 13 1/2 15 3 K RH
/ PRO75 / 80A / 85A / 6E5-45945-01-00 13 1/4 17 3 K RH
90A / 100A / PRO V 100 6E5-45941-00-00 13 19 3 K RH
/ 115A / 115B / 115C / 6E5-45943-00-00 12 5/8 21 3 K RH
130A / 130B / 140A / 6E5-45952-00-00 13 23 3 K RH
140B / 140C 6E5-45956-00-00 13 25 3 K RH
F150A / F150D / F175A 6G5-45941-00-00 15 1/4 15 3 M RH
/ F200A / F200C / F200F 6G5-45952-00-00 14 5/8 16 3 M RH
/ F200G 6G5-45947-01-00 14 1/2 17 3 M RH
150A / 150C / 150F / 6G5-45945-01-00 14 19 3 M RH
Z150P / 175A / 175B / 6G5-45943-01-00 13 3/4 21 3 M RH
175D / Z175G / 200A /
200B / 200F / Z200N 6G5-45949-00-00 13 1/2 23 3 M RH
FL150A / FL150D / 6K1-45947-00-00 14 1/2 17 3 ML LH
FL200C / FL200F /
FL200G / L150A / L150C /
L150F / LZ150P / L200A / 6K1-45945-00-00 14 19 3 ML LH
L200B / L200F / LZ200N
DUAL THRUST SERIES (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6C / 8C 6G1-W4592-00-00 9 5 3 N RH
F6A / F8C / F9,9F / F9.9J 6G1-W4591-01-00 9 7 3 N RH
F8B / F9,9B / F9,9C / F15A / F15C / 683-W4592-02-00 9 3/4 6 1/2 3 J RH
F20B / 9,9D / 15D / 9,9F / 15F 683-W4591-02-00 9 3/4 8 3 J RH
FT8D 69G-45941-00-00 11 3/4 5 3/4 3 R RH
69G-45943-00-00 11 3/4 7 3 R RH
FT9.9A/D/G/L
6G8-45947-00-00 11 3/4 9 1/4 3 R RH
F25A/G 6J8-W4591-00-00 10 5/8 8 1/2 3 F RH
FT25B / FT25F 68U-45941-00-00 12 1/4 9 3 G RH
FT50B / FT50C / FT50G / FT50J / 68S-45941-00-00 14 11 3 K RH
FT60B / FT60D / FT60G
TALON GP SERIES - SDS (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6FP-45941-00-00 13 5/8 14 3 K RH 2017
6FP-45943-00-00 13 1/2 15 3 K RH 2017
F70A / F80A / F80B / F100A / F100D / 6FP-45945-00-00 13 1/4 16 3 K RH 2017
F100F / F115A / F115B/ F130A
6FP-45947-00-00 13 1/8 17 3 K RH 2017
6FP-45949-00-00 13 18 3 K RH 2017
TALON SERIES (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
60F / 70B / 75A / 75C / PRO75 / 80A / 6EK-45941-00-00 13 1/2 9 3 K RH
85A / 90A / 100A / PRO V 100 / 115A 6EK-45943-00-00 13 1/2 10 1/2 3 K RH
/ 115B / 115C / 130A / 130B / 140A / 6EK-45945-00-00 13 1/2 12 3 K RH
140B / 140C 6EK-45947-00-00 13 1/2 14 3 K RH
F70A / F80A / F80B / F100A / F100D /
F100F / F115A / F115B 6EK-45949-00-00 13 1/2 16 3 K RH
STAINLESS STEEL SERIES
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
F25A / F25D / F25G 664-45972-00-00 9 1/8 12 3 F RH
20C / 20D / 25B / 25D / 25N / 25V /
30A / 30D / 30G 664-45970-00-00 9 1/8 13 3 F RH
Marine accessories – 7
