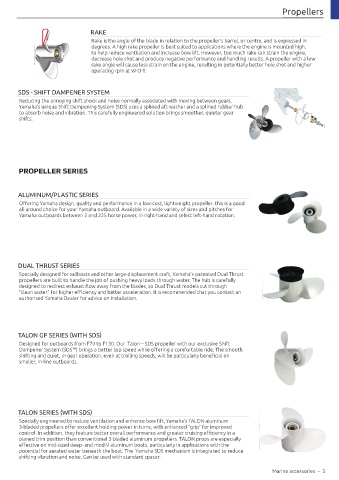

Propellers

RAKE
Rake
Rake is the angle of the blade in relation to the propeller’s barrel, or centre, and is expressed in
Rake is the angle of the blades in relation to the propeller’s barrel, or
degrees. A high rake propeller is best suited to applications where the engine is mounted high,
center, and is expressed in degrees. A high rake propeller is best
suited for high engine mount applications by helping reduce
to help reduce ventilation and increase bow lift. However, too much rake can strain the engine,
ventilation and increasing bow lift. Too much rake, however, strains
decrease hole shot and produce negative performance and handling results. A propeller with a low
the engine, decreases hole shot and can produce negative
performance and handling results. A propeller with a low rake angle
rake angle will cause less strain on the engine, resulting in potentially better hole shot and higher
will cause less strain on the engine, resulting in potentially better
hole shot and higher WOT operating rpm.
operating rpm at W-O-T.
SDS - SHIFT DAMPENER SYSTEM
Reducing the annoying shift shock and noise normally associated with moving between gears,
Yamaha’s unique Shift Dampening System (SDS) uses a splined aft washer and a splined rubber hub
to absorb noise and vibration. This carefully engineered solution brings smoother, quieter gear
shifts.

Propeller 6EK_Damper system_02
PROPELLER SERIES

ALUMINUM/PLASTIC SERIES
Offering Yamaha design, quality and performance in a low-cost, lightweight propeller. this is a good
all-around choice for your Yamaha outboard. Available in a wide variety of sizes and pitches for
Yamaha outboards between 2 and 225 horse power, in right-hand and select left-hand rotation.

DUAL THRUST SERIES
Specially designed for sailboats and other large-displacement craft, Yamaha’s patented Dual Thrust
propellers are built to handle the job of pushing heavy loads through water. The hub is carefully
designed to redirect exhaust flow away from the blades, so Dual Thrust models cut through
“clean water” for higher efficiency and better acceleration. It is recommended that you contact an
authorised Yamaha Dealer for advice on installation.

TALON GP SERIES (WITH SDS)
Designed for outboards from F70 to F130. Our Talon – SDS propeller with our exclusive Shift
Dampener System (SDS™) brings a better top speed while offering a comfortable ride. The smooth
shifting and quiet, in-gear operation, even at trolling speeds, will be particularly beneficial on
smaller, in-line outboards.

TALON SERIES (WITH SDS)
Specially engineered to reduce ventilation and enhance bow lift, Yamaha’s TALON aluminum
3-bladed propellers offer excellent holding power in turns, with enhanced “grip” for improved
control. In addition, they feature better overall performance and greater cruising efficiency in a
planed trim position than conventional 3-bladed aluminum propellers. TALON props are especially
effective on mid-sized deep- and mod-V aluminum boats, particularly in applications with the
potential for aerated water beneath the boat. The Yamaha SDS mechanism is integrated to reduce
shifting vibration and noise. Can be used with standard spacer.

Marine accessories – 3
