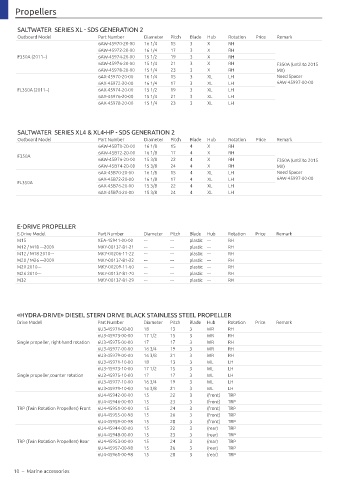

Propellers

SALTWATER SERIES XL - SDS GENERATION 2
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6AW-45970-20-00 16 1/4 15 3 X RH
6AW-45972-20-00 16 1/4 17 3 X RH
F350A (2011--) 6AW-45974-20-00 15 1/2 19 3 X RH
6AW-45976-20-00 15 1/4 21 3 X RH F350A (until to 2015
6AW-45978-20-00 15 1/4 23 3 X RH MY)
6AX-45970-20-00 16 1/4 15 3 XL LH Need Spacer
6AX-45972-20-00 16 1/4 17 3 XL LH 6AW-45997-00-00
FL350A (2011--) 6AX-45974-20-00 15 1/2 19 3 XL LH
6AX-45976-20-00 15 1/4 21 3 XL LH
6AX-45978-20-00 15 1/4 23 3 XL LH

SALTWATER SERIES XL4 & XL4-HP - SDS GENERATION 2
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6AW-45B70-20-00 16 1/8 15 4 X RH
6AW-45B72-20-00 16 1/8 17 4 X RH
F350A
6AW-45B76-20-00 15 3/8 22 4 X RH F350A (until to 2015
6AW-45B74-20-00 15 3/8 24 4 X RH MY)
6AX-45B70-20-00 16 1/8 15 4 XL LH Need Spacer
6AX-45B72-20-00 16 1/8 17 4 XL LH 6AW-45997-00-00
FL350A
6AX-45B76-20-00 15 3/8 22 4 XL LH
6AX-45B74-20-00 15 3/8 24 4 XL LH

E-DRIVE PROPELLER
E-Drive Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
M15 XEA-45941-00-00 --- --- plastic --- RH
M12 / M18 ---2009 MKY-00137-81-21 --- --- plastic --- RH
M12 / M18 2010--- MKY-00206-11-22 --- --- plastic --- RH
M20 / M26 ---2009 MKY-00137-81-22 --- --- plastic --- RH
M20 2010--- MKY-00209-11-60 --- --- plastic --- RH
M26 2010--- MKY-00137-81-70 --- --- plastic --- RH
M32 MKY-00137-81-29 --- --- plastic --- RH

«HYDRA-DRIVE» DIESEL STERN DRIVE BLACK STAINLESS STEEL PROPELLER
Drive Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6U3-45971-00-00 18 13 3 WR RH
6U3-45973-00-00 17 1/2 15 3 WR RH
Single propeller, right-hand rotation 6U3-45975-00-00 17 17 3 WR RH
6U3-45977-00-00 16 3/4 19 3 WR RH
6U3-45979-00-00 16 3/8 21 3 WR RH
6U3-45971-10-00 18 13 3 WL LH
6U3-45973-10-00 17 1/2 15 3 WL LH
Single propeller,counter rotation 6U3-45975-10-00 17 17 3 WL LH
6U3-45977-10-00 16 3/4 19 3 WL LH
6U3-45979-10-00 16 3/8 21 3 WL LH
6U4-45942-00-00 15 22 3 (front) TRP
6U4-45946-00-00 15 23 3 (front) TRP
TRP (Twin Rotation Propellers) Front 6U4-45951-00-00 15 24 3 (front) TRP
6U4-45955-00-98 15 26 3 (front) TRP
6U4-45959-00-98 15 28 3 (front) TRP
6U4-45944-00-00 15 22 3 (rear) TRP
6U4-45948-00-00 15 23 3 (rear) TRP
TRP (Twin Rotation Propellers) Rear 6U4-45953-00-00 15 24 3 (rear) TRP
6U4-45957-00-98 15 26 3 (rear) TRP
6U4-45961-00-98 15 28 3 (rear) TRP
