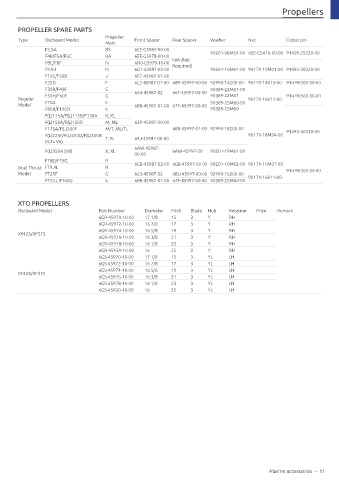

Page 13 - Yamaha Marine Marine Zubehör 2019

Propellers

PROPELLER SPARE PARTS
Propeller
Type Outboard Model Front Spacer Rear Spacer Washer Nut Cotter pin
Mark
F2.5A BS 6EE-G5987-00-00 90201-08M54-00 6EE-G5616-00-00 91409-25030-00
F4B/F5A/F6C BA 6EE-G5978-00-00
F8C/F8F N 6N0-G5978-10-00 N/A (Not
Required)
F9.9J N 6G1-45987-02-00 90201-10M01-00 90171-10M01-00 91490-30020-00
F15C/F20B J 6E7-45987-01-00
F25D F 6L2-45987-01-00 689-45997-00-00 92990-14200-00 90171-14013-00 914-90300-30-00
F30B/F40F G 663-45987-02 66T-45997-00-00 90389-22M01-00
F50H/F60F G 90389-22M01 914-90300-30-00
Regular 90171-16011-00
Model F70A K 688-45987-01-00 67F-45997-00-00 90389-25M00-00
F80B/F100D K 90389-25M00
F(L)115A/F(L)115B/F130A K, KL
F(L)150A/F(L)150D M, ML 63P-45987-00-00
F175A/F(L)200F M/T, ML/TL 688-45997-01-00 92990-18200-00 91490-40030-00
F(L)225F/F(L)250D/F(L)300B T, TL 69J-45987-00-00 90171-18M04-00
(4,2L V6)
6AW-45987-
F(L)350A (V8) X, XL 6AW-45997-00 90201-19M01-00
00-00
FT8D/FT8G R
Dual Thrust FT9.9L R 6G8-45987-02-00 6G8-45997-00 00 90201-10M02-00 90171-10M07-00 914-90300-30-00
Model FT25F G 663-45987-02 68U-45997-00-00 92990-16200-00 90171-16011-00
FT50J, FT60G K 688-45987-01-00 67F-45997-00-00 90389-25M00-00

XTO PROPELLERS
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Price Remark
6GR-45970-10-00 17 1/8 15 3 Y RH
6GR-45972-10-00 16 7/8 17 3 Y RH
6GR-45974-10-00 16 5/8 19 3 Y RH
XF425/XF375
6GR-45976-10-00 16 3/8 21 3 Y RH
6GR-45978-10-00 16 1/8 23 3 Y RH
6GR-45930-10-00 16 25 3 Y RH
6GS-45970-10-00 17 1/8 15 3 YL LH
6GS-45972-10-00 16 7/8 17 3 YL LH
6GS-45974-10-00 16 5/8 19 3 YL LH
XF425/XF375
6GS-45976-10-00 16 3/8 21 3 YL LH
6GS-45978-10-00 16 1/8 23 3 YL LH
6GS-45930-10-00 16 25 3 YL LH

Marine accessories – 11
