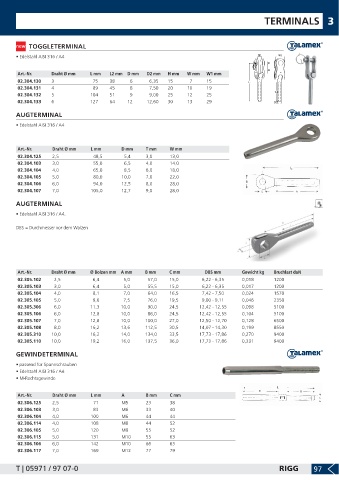

Page 99 - Lankhorst Katalog 2021/2022

TERMINALS 3

TOGGLETERMINAL
• Edelstahl AISI 316 / A4 W W 1
D
H
Art.-Nr. Draht Ø mm L mm L2 mm D mm D2 mm H mm W mm W1 mm
02.304.130 3 75 38 6 6,35 15 7 15 L
02.304.131 4 89 45 8 7,50 20 10 19
L2
02.304.132 5 104 51 9 9,00 25 12 25
02.304.133 6 127 64 12 12,60 30 13 29 D2

AUGTERMINAL
• Edelstahl AISI 316 / A4

Art.-Nr. Draht Ø mm L mm D mm T mm W mm
02.304.125 2,5 48,5 5,4 3,0 13,0
02.304.103 3,0 55,0 6,5 4,0 14,0
02.304.104 4,0 65,0 8,5 6,0 18,0
02.304.105 5,0 80,0 10,0 7,0 22,0
02.304.106 6,0 94,0 12,5 8,0 28,0
02.304.107 7,0 105,0 12,7 9,0 28,0

AUGTERMINAL
• Edelstahl AISI 316 / A4.

DBS = Durchmesser vor dem Walzen

Art.-Nr. Draht Ø mm Ø Bolzen mm A mm B mm C mm DBS mm Gewicht kg Bruchlast daN
02.305.102 2,5 6,4 5,0 57,0 15,0 6,22 - 6,35 0,018 1200
02.305.103 3,0 6,4 5,0 55,5 15,0 6,22 - 6,35 0,017 1200
02.305.104 4,0 8,1 7,0 64,0 16,5 7,42 - 7,50 0,024 1570
02.305.105 5,0 9,6 7,5 76,0 19,5 9,00 - 9,11 0,046 2350
02.305.306 6,0 11,3 10,0 90,0 24,5 12,42 - 12,55 0,098 5100
02.305.106 6,0 12,8 10,0 86,0 24,5 12,42 - 12,55 0,104 5100
02.305.107 7,0 12,8 10,0 100,0 27,0 12,50 - 12,70 0,128 6500
02.305.108 8,0 16,2 13,6 112,5 30,5 14,07 - 14,30 0,199 8550
02.305.310 10,0 16,2 14,0 134,0 33,5 17,73 - 17,86 0,270 9400
02.305.110 10,0 19,2 16,0 137,5 36,0 17,73 - 17,86 0,331 9400

GEWINDETERMINAL

• passend für Spannschrauben
• Edelstahl AISI 316 / A4
• M-Rechtsgewinde

Art.-Nr. Draht Ø mm L mm A B mm C mm
02.306.125 2,5 71 M5 23 38
02.306.103 3,0 83 M6 33 40
02.306.104 4,0 100 M6 44 44
02.306.114 4,0 108 M8 44 52
02.306.105 5,0 120 M8 55 52
02.306.115 5,0 131 M10 55 63
02.306.106 6,0 142 M10 66 63
02.306.117 7,0 169 M12 77 79

T | 05971 / 97 07-0 RIGG 97
