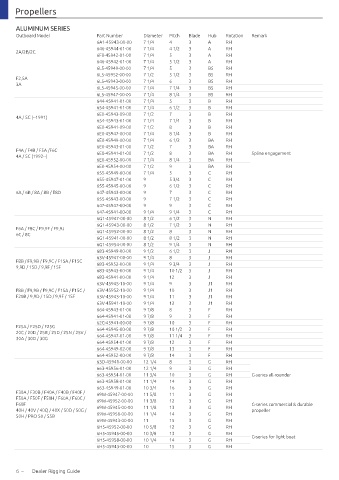

Propellers
ALUMINUM SERIES
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6A1-45943-00-00 7 1/4 4 3 A RH
646-45944-01-00 7 1/4 4 1/2 3 A RH
2A/2B/2C
6F8-45942-01-00 7 1/4 5 3 A RH
646-45942-01-00 7 1/4 5 1/2 3 A RH
6L5-45949-00-00 7 1/4 5 3 BS RH
6L5-45952-00-00 7 1/2 5 1/2 3 BS RH
F2,5A 6L5-45943-00-00 7 1/4 6 3 BS RH
3A
6L5-45945-00-00 7 1/4 7 1/4 3 BS RH
6L5-45947-00-00 7 1/4 8 1/4 3 BS RH
644-45941-01-00 7 1/4 5 3 B RH
654-45941-01-00 7 1/4 6 1/2 3 B RH
6E0-45943-09-00 7 1/2 7 3 B RH
4A / 5C (--1991)
654-45943-01-00 7 1/4 7 1/4 3 B RH
6E0-45941-09-00 7 1/2 8 3 B RH
6E0-45947-00-00 7 1/4 8 1/4 3 B RH
6E0-45949-00-00 7 1/4 6 1/2 3 BA RH
6E0-45943-01-00 7 1/2 7 3 BA RH
F4A / F4B / F5A /F6C 6E0-45941-01-00 7 1/2 8 3 BA RH Spline engagement
4A / 5C (1992--)
6E0-45952-00-00 7 1/4 8 1/4 3 BA RH
6E0-45954-00-00 7 1/2 9 3 BA RH
655-45949-00-00 7 1/4 5 3 C RH
655-45947-01-00 9 5 3/4 3 C RH
655-45945-00-00 9 6 1/2 3 C RH
6A / 6B / 8A / 8B / E8D 647-45943-00-00 9 7 3 C RH
655-45943-00-00 9 7 1/2 3 C RH
647-45947-00-00 9 9 3 C RH
647-45941-00-00 9 1/4 9 1/4 3 C RH
6G1-45947-00-00 8 1/2 6 1/2 3 N RH
6G1-45943-00-00 8 1/2 7 1/2 3 N RH
F6A / F8C / F9,9F / F9,9J 6G1-45952-00-00 8 1/2 8 3 N RH
6C / 8C
6G1-45941-00-00 8 1/2 8 1/2 3 N RH
6G1-45954-00-00 8 1/2 9 1/4 3 N RH
683-45949-00-00 9 1/2 6 1/2 3 J RH
63V-45947-00-00 9 1/4 8 3 J RH
F8B / F9,9B / F9,9C / F15A / F15C 683-45952-00-00 9 1/4 9 3/4 3 J RH
9,9D / 15D / 9,9F / 15F
683-45943-00-00 9 1/4 10 1/2 3 J RH
683-45941-00-00 9 1/4 12 3 J RH
63V-45945-10-00 9 1/4 9 3 J1 RH
F8B / F9,9B / F9,9C / F15A / F15C / 63V-45952-10-00 9 1/4 10 3 J1 RH
F20B / 9,9D / 15D / 9,9F / 15F 63V-45943-10-00 9 1/4 11 3 J1 RH
63V-45941-10-00 9 1/4 12 3 J1 RH
664-45943-01-00 9 7/8 8 3 F RH
664-45941-01-00 9 7/8 9 3 F RH
62C-45941-00-00 9 7/8 10 3 F RH
F25A / F25D / F25G 664-45945-00-00 9 7/8 10 1/2 3 F RH
20C / 20D / 25B / 25D / 25N / 25V /
30A / 30D / 30G 664-45947-01-00 9 7/8 11 1/4 3 F RH
664-45954-01-00 9 7/8 12 3 F RH
664-45949-02-00 9 7/8 13 3 F RH
664-45952-00-00 9 7/8 14 3 F RH
63D-45941-00-00 12 1/4 8 3 G RH
663-45956-01-00 12 1/4 9 3 G RH
663-45954-01-00 11 3/4 10 3 G RH G-series all-rounder
663-45958-01-00 11 1/4 14 3 G RH
663-45949-01-00 10 3/4 16 3 G RH
F30A / F30B / F40A / F40B / F40F / 69W-45947-00-00 11 5/8 11 3 G RH
F50A / F50F / F50H / F60A / F60C / 69W-45952-00-00 11 3/8 12 3 G RH
F60F G-series commercial & durable
40H / 40V / 40Q / 40X / 50D / 50G / 69W-45945-00-00 11 1/8 13 3 G RH propeller
50H / PRO 50 / 55B 69W-45958-00-00 11 1/4 14 3 G RH
69W-45943-00-00 11 15 3 G RH
6H5-45952-00-00 10 5/8 12 3 G RH
6H5-45945-00-00 10 3/8 13 3 G RH G-series for light boat
6H5-45958-00-00 10 1/4 14 3 G RH
6H5-45943-00-00 10 15 3 G RH
