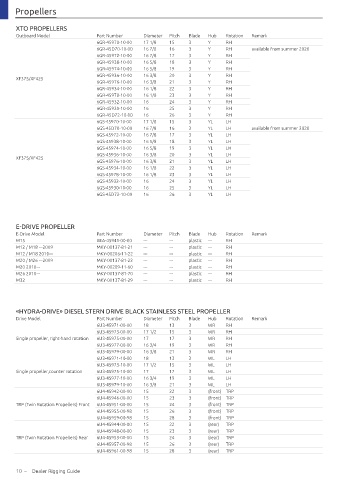

Propellers

XTO PROPELLERS
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6GR-45970-10-00 17 1/8 15 3 Y RH
6GR-45D70-10-00 16 7/8 16 3 Y RH available from summer 2020
6GR-45972-10-00 16 7/8 17 3 Y RH
6GR-45938-10-00 16 5/8 18 3 Y RH
6GR-45974-10-00 16 5/8 19 3 Y RH
6GR-45936-10-00 16 3/8 20 3 Y RH
XF375/XF425
6GR-45976-10-00 16 3/8 21 3 Y RH
6GR-45934-10-00 16 1/8 22 3 Y RH
6GR-45978-10-00 16 1/8 23 3 Y RH
6GR-45932-10-00 16 24 3 Y RH
6GR-45930-10-00 16 25 3 Y RH
6GR-45D72-10-00 16 26 3 Y RH
6GS-45970-10-00 17 1/8 15 3 YL LH
6GS-45D70-10-00 16 7/8 16 3 YL LH available from summer 2020
6GS-45972-10-00 16 7/8 17 3 YL LH
6GS-45938-10-00 16 5/8 18 3 YL LH
6GS-45974-10-00 16 5/8 19 3 YL LH
6GS-45936-10-00 16 3/8 20 3 YL LH
XF375/XF425
6GS-45976-10-00 16 3/8 21 3 YL LH
6GS-45934-10-00 16 1/8 22 3 YL LH
6GS-45978-10-00 16 1/8 23 3 YL LH
6GS-45932-10-00 16 24 3 YL LH
6GS-45930-10-00 16 25 3 YL LH
6GS-45D72-10-00 16 26 3 YL LH

E-DRIVE PROPELLER
E-Drive Model Part Number Diameter Pitch Blade Hub Rotation Remark
M15 XEA-45941-00-00 --- --- plastic --- RH
M12 / M18 ---2009 MKY-00137-81-21 --- --- plastic --- RH
M12 / M18 2010--- MKY-00206-11-22 --- --- plastic --- RH
M20 / M26 ---2009 MKY-00137-81-22 --- --- plastic --- RH
M20 2010--- MKY-00209-11-60 --- --- plastic --- RH
M26 2010--- MKY-00137-81-70 --- --- plastic --- RH
M32 MKY-00137-81-29 --- --- plastic --- RH

«HYDRA-DRIVE» DIESEL STERN DRIVE BLACK STAINLESS STEEL PROPELLER
Drive Model Part Number Diameter Pitch Blade Hub Rotation Remark
6U3-45971-00-00 18 13 3 WR RH
6U3-45973-00-00 17 1/2 15 3 WR RH
Single propeller, right-hand rotation 6U3-45975-00-00 17 17 3 WR RH
6U3-45977-00-00 16 3/4 19 3 WR RH
6U3-45979-00-00 16 3/8 21 3 WR RH
6U3-45971-10-00 18 13 3 WL LH
6U3-45973-10-00 17 1/2 15 3 WL LH
Single propeller,counter rotation 6U3-45975-10-00 17 17 3 WL LH
6U3-45977-10-00 16 3/4 19 3 WL LH
6U3-45979-10-00 16 3/8 21 3 WL LH
6U4-45942-00-00 15 22 3 (front) TRP
6U4-45946-00-00 15 23 3 (front) TRP
TRP (Twin Rotation Propellers) Front 6U4-45951-00-00 15 24 3 (front) TRP
6U4-45955-00-98 15 26 3 (front) TRP
6U4-45959-00-98 15 28 3 (front) TRP
6U4-45944-00-00 15 22 3 (rear) TRP
6U4-45948-00-00 15 23 3 (rear) TRP
TRP (Twin Rotation Propellers) Rear 6U4-45953-00-00 15 24 3 (rear) TRP
6U4-45957-00-98 15 26 3 (rear) TRP
6U4-45961-00-98 15 28 3 (rear) TRP

10 – Dealer Rigging Guide
