Propellers

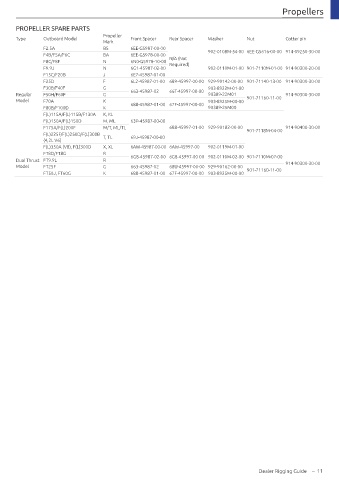

PROPELLER SPARE PARTS
Propeller
Type Outboard Model Front Spacer Rear Spacer Washer Nut Cotter pin
Mark
F2.5A BS 6EE-G5987-00-00
F4B/F5A/F6C BA 6EE-G5978-00-00 902-0108M-54-00 6EE-G5616-00-00 914-09250-30-00
F8C/F8F N 6N0-G5978-10-00 N/A (Not
Required)
F9.9J N 6G1-45987-02-00 902-0110M-01-00 901-7110M-01-00 914-90300-20-00
F15C/F20B J 6E7-45987-01-00
F25D F 6L2-45987-01-00 689-45997-00-00 929-90142-00-00 901-71140-13-00 914-90300-30-00
F30B/F40F G 903-8922M-01-00
Regular F50H/F60F G 663-45987-02 66T-45997-00-00 90389-22M01 914-90300-30-00
Model F70A K 903-8925M-00-00 901-71160-11-00
F80B/F100D K 688-45987-01-00 67F-45997-00-00 90389-25M00
F(L)115A/F(L)115B/F130A K, KL
F(L)150A/F(L)150D M, ML 63P-45987-00-00
F175A/F(L)200F M/T, ML/TL 688-45997-01-00 929-90182-00-00 901-7118M-04-00 914-90400-30-00
F(L)225F/F(L)250D/F(L)300B
(4,2L V6) T, TL 69J-45987-00-00
F(L)350A (V8), F(L)300D X, XL 6AW-45987-00-00 6AW-45997-00 902-0119M-01-00
FT8D/FT8G R
Dual Thrust FT9.9L R 6G8-45987-02-00 6G8-45997-00 00 902-0110M-02-00 901-7110M-07-00
Model FT25F G 663-45987-02 68U-45997-00-00 929-90162-00-00 901-71160-11-00 914-90300-30-00
FT50J, FT60G K 688-45987-01-00 67F-45997-00-00 903-8925M-00-00

Dealer Rigging Guide – 11
