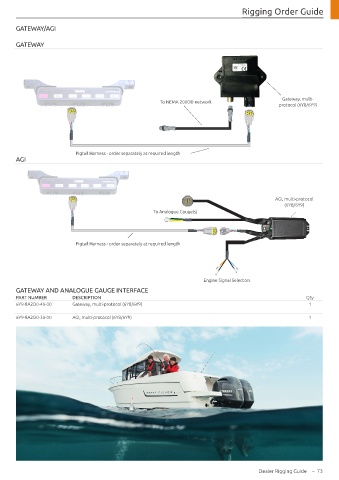

Rigging Order Guide
GATEWAY/AGI
GATEWAY
Gateway, multi-
To NEMA 2000® network
protocol (6Y8/6Y9)
Pigtail Harness - order separately at required length
AGI
AGI, multi-protocol
(6Y8/6Y9)
To Analogue Gauge(s)
Pigtail Harness - order separately at required length
Engine Signal Selectors
GATEWAY AND ANALOGUE GAUGE INTERFACE
PART NUMBER DESCRIPTION Qty
6Y9-8A2D0-40-00 Gateway, multi-protocol (6Y8/6Y9) 1
6Y9-8A2D0-30-00 AGI, multi-protocol (6Y8/6Y9) 1
