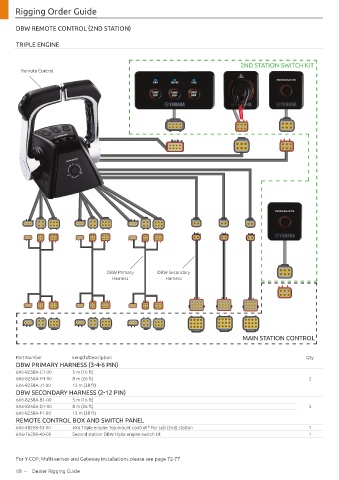

Rigging Order Guide

DBW REMOTE CONTROL (2ND STATION)

TRIPLE ENGINE

2ND STATION SWITCH KIT
Remote Control
6X6-48208-53

6X6-82570-F0-00 6X6-82570-90-00 6X6-82570-B0-00

6X6-82570-B0-00

DBW Primary DBW Secondary
Harness Harness

MAIN STATION CONTROL

Part Number Length/Description Qty
DBW PRIMARY HARNESS (3-4-6 PIN)
6X6-8258A-G1-00 5 m (16 ft)
6X6-8258A-H1-00 8 m (26 ft) 3
6X6-8258A-J1-00 12 m (38 ft)
DBW SECONDARY HARNESS (2-12 PIN)
6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-D1-00 8 m (26 ft) 3
6X6-8258A-F1-00 12 m (38 ft)
REMOTE CONTROL BOX AND SWITCH PANEL
6X6-48208-53-00 6X6 Triple engine Top mount control * For sub (2nd) station 1
6X6-762B0-40-00 Second station DBW triple engine switch kit 1

For Y-COP, Multi-sensor and Gateway installations please see page 72-77
68 – Dealer Rigging Guide
