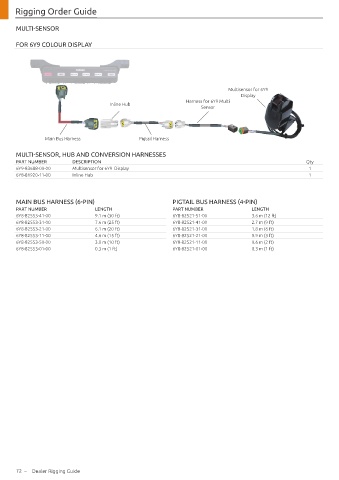

Rigging Order Guide

MULTI-SENSOR

FOR 6Y9 COLOUR DISPLAY

Multisensor for 6Y9
Display
6Y9-83688-00
Harness for 6Y9 Multi
Inline Hub
Sensor
6Y8-81920-11-00 6Y9-83553-60-00

Main Bus Harness Pigtail Harness

MULTI-SENSOR, HUB AND CONVERSION HARNESSES
PART NUMBER DESCRIPTION Qty
6Y9-83688-00-00 Multisensor for 6Y9 Display 1
6Y8-81920-11-00 Inline Hub 1

MAIN BUS HARNESS (6-PIN) PIGTAIL BUS HARNESS (4-PIN)
PART NUMBER LENGTH PART NUMBER LENGTH
6Y8-82553-41-00 9.1 m (30 ft) 6Y8-82521-51-00 3.6 m (12 ft)
6Y8-82553-31-00 7.6 m (25 ft) 6Y8-82521-41-00 2.7 m (9 ft)
6Y8-82553-21-00 6.1 m (20 ft) 6Y8-82521-31-00 1.8 m (6 ft)
6Y8-82553-11-00 4.6 m (15 ft) 6Y8-82521-21-00 0.9 m (3 ft)
6Y8-82553-50-00 3.0 m (10 ft) 6Y8-82521-11-00 0.6 m (2 ft)
6Y8-82553-01-00 0.3 m (1 ft) 6Y8-82521-01-00 0.3 m (1 ft)

72 – Dealer Rigging Guide
