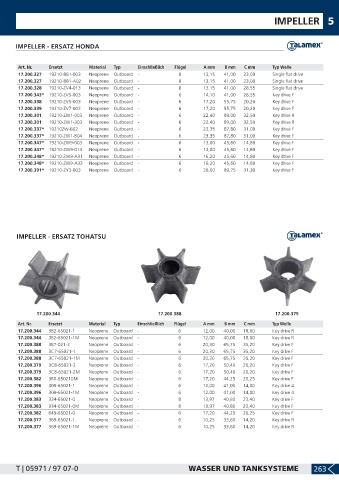

Page 265 - LankhorstHohorst Katalog 2019-2020

IMPELLER 5

IMPELLER - ERSATZ HONDA

Art. Nr. Ersetzt Material Typ Einschließlich Flügel A mm B mm C mm Typ Welle
17.200.327 19210-881-003 Neoprene Outboard - 8 13,15 41,00 23,00 Single flat drive
17.200.327 19210-881-A02 Neoprene Outboard - 8 13,15 41,00 23,00 Single flat drive
17.200.328 19210-ZV4-013 Neoprene Outboard - 6 13,15 41,00 28,55 Single flat drive
17.200.343* 19210-ZV5-003 Neoprene Outboard - 6 14,10 41,00 28,55 Key drive F
17.200.338 19210-ZV5-003 Neoprene Outboard - 6 17,20 55,75 20,20 Key drive F
17.200.339 19210-ZV7-003 Neoprene Outboard - 6 17,20 55,75 20,20 Key drive F
17.200.301 19210-ZW1-003 Neoprene Outboard - 6 22,40 89,00 32,50 Key drive R
17.200.301 19210-ZW1-303 Neoprene Outboard - 6 22,40 89,00 32,50 Key drive R
17.200.337* 19210ZW-B02 Neoprene Outboard - 6 23,35 87,80 31,00 Key drive F
17.200.337* 19210-ZW1-B04 Neoprene Outboard - 6 23,35 87,80 31,00 Key drive F
17.200.347* 19210-ZW9-003 Neoprene Outboard - 6 13,00 45,60 14,80 Key drive F
17.200.347* 19210-ZW9-013 Neoprene Outboard - 6 13,00 45,60 14,80 Key drive F
17.200.348* 19210-ZW9-A31 Neoprene Outboard - 6 16,20 45,60 14,80 Key drive F
17.200.348* 19210-ZW9-A32 Neoprene Outboard - 6 16,20 45,60 14,80 Key drive F
17.200.391* 19210-ZY3-003 Neoprene Outboard - 6 26,00 89,75 31,30 Key drive F

IMPELLER - ERSATZ TOHATSU

17.200.344 17.200.388 17.200.379

Art. Nr. Ersetzt Material Typ Einschließlich Flügel A mm B mm C mm Typ Welle
17.200.344 3B2-65021-1 Neoprene Outboard - 6 12,00 40,00 18,00 Key drive R
17.200.344 3B2-65021-1M Neoprene Outboard - 6 12,00 40,00 18,00 Key drive R
17.200.388 3B7-021-2 Neoprene Outboard - 6 20,30 65,75 35,20 Key drive F
17.200.388 3C7-65021-1 Neoprene Outboard - 6 20,30 65,75 35,20 Key drive F
17.200.388 3C7-65021-1M Neoprene Outboard - 6 20,30 65,75 35,20 Key drive F
17.200.379 3C8-65021-2 Neoprene Outboard - 6 17,20 50,40 20,20 Key drive F
17.200.379 3C8-65021-2M Neoprene Outboard - 6 17,20 50,40 20,20 Key drive F
17.200.382 3R0-650210M Neoprene Outboard - 6 17,20 44,25 20,25 Key drive F
17.200.396 309-65021-1 Neoprene Outboard - 6 12,00 41,00 14,00 Key drive 4
17.200.396 309-65021-1M Neoprene Outboard - 6 12,00 41,00 14,00 Key drive 4
17.200.383 334-65021-0 Neoprene Outboard - 8 13,97 40,80 23,40 Key drive F
17.200.383 334-65021-0M Neoprene Outboard - 8 13,97 40,80 23,40 Key drive F
17.200.382 645-65021-0 Neoprene Outboard - 6 17,20 44,25 20,25 Key drive F
17.200.377 369-65021-1 Neoprene Outboard - 6 10,25 33,60 14,20 Key drive R
17.200.377 369-65021-1M Neoprene Outboard - 6 10,25 33,60 14,20 Key drive R

T | 05971 / 97 07-0 WASSER UND TANKSYSTEME 263
