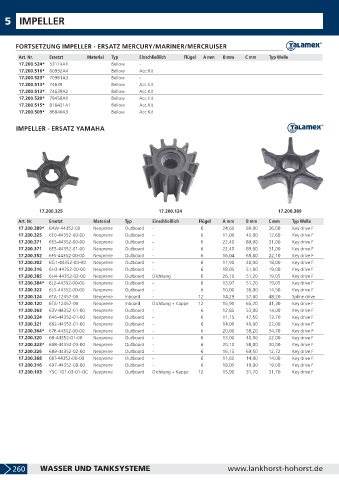

Page 262 - LankhorstHohorst Katalog 2019-2020

5 IMPELLER

FORTSETZUNG IMPELLER - ERSATZ MERCURY/MARINER/MERCRUISER
Art. Nr. Ersetzt Material Typ Einschließlich Flügel A mm B mm C mm Typ Welle
17.200.524* 53114A1 Bellow -
17.200.516* 60932A4 Bellow Acc Kit
17.200.523* 70981A3 Bellow -
17.200.513* 74639 Bellow Acc Kit
17.200.513* 74639A2 Bellow Acc Kit
17.200.520* 78458A1 Bellow Acc Kit
17.200.515* 816431A1 Bellow Acc Kit
17.200.509* 86840A3 Bellow Acc Kit

IMPELLER - ERSATZ YAMAHA

17.200.325 17.200.124 17.200.389
Art. Nr. Ersetzt Material Typ Einschließlich Flügel A mm B mm C mm Typ Welle
17.200.389* 6AW-44352-00 Neoprene Outboard - 6 24,60 89,00 36,00 Key drive F
17.200.325 6E0-44352-00-00 Neoprene Outboard - 6 11,00 40,00 12,60 Key drive F
17.200.371 6E5-44352-00-00 Neoprene Outboard - 6 22,40 89,00 31,00 Key drive F
17.200.371 6E5-44352-01-00 Neoprene Outboard - 6 22,40 89,00 31,00 Key drive F
17.200.352 6F5-44352-00-00 Neoprene Outboard - 6 16,04 69,80 22,10 Key drive F
17.200.302 6G1-44352-00-00 Neoprene Outboard - 6 11,90 40,00 18,00 Key drive F
17.200.316 6H3-44352-00-00 Neoprene Outboard - 6 18,05 51,80 19,00 Key drive F
17.200.385 6H4-44352-02-00 Neoprene Outboard Dichtung 6 26,10 51,20 19,05 Key drive F
17.200.384* 6L2-44352-00-00 Neoprene Outboard - 6 13,97 51,20 19,05 Key drive F
17.200.322 6L5-44352-00-00 Neoprene Outboard - 6 10,00 36,00 14,50 Key drive F
17.200.124 6TA-12457-00 Neoprene Inboard - 12 14,29 57,00 48,20 Spline drive
17.200.120 6TA-12457-00 Neoprene Inboard Dichtung + Kappe 12 15,90 65,20 41,30 Key drive F
17.200.363 63V-44352-01-00 Neoprene Outboard - 6 12,85 53,00 14,00 Key drive F
17.200.324 646-44352-01-00 Neoprene Outboard - 6 11,15 47,50 13,70 Key drive F
17.200.321 662-44352-01-00 Neoprene Outboard - 6 14,00 40,00 22,00 Key drive F
17.200.364* 67F-44352-00-00 Neoprene Outboard - 6 20,00 58,20 34,70 Key drive F
17.200.320 68-44352-01-00 Neoprene Outboard - 6 13,00 40,00 22,00 Key drive F
17.200.323* 688-44352-03-00 Neoprene Outboard - 6 20,10 58,00 30,00 Key drive F
17.200.326 689-44352-02-00 Neoprene Outboard - 6 16,15 69,50 12,72 Key drive F
17.200.368 68T-44352-00-00 Neoprene Outboard - 6 11,60 14,00 14,00 Key drive F
17.200.316 697-44352-00-00 Neoprene Outboard - 6 18,05 19,00 19,00 Key drive F
17.200.103 YSC-101-03-01-OC Neoprene Outboard Dichtung + Kappe 12 15,90 31,70 31,70 Key drive F

260 WASSER UND TANKSYSTEME www.lankhorst-hohorst.de
