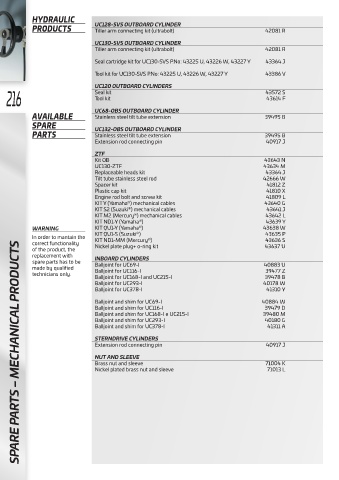

Page 218 - ULTRAFLEX Katalog 2021

HYDRAULIC
PRODUCTS UC128-SVS OUTBOARD CYLINDER 42081 R
Tiller arm connecting kit (ultrabolt)

UC130-SVS OUTBOARD CYLINDER
Tiller arm connecting kit (ultrabolt) 42081 R

Seal cartridge kit for UC130-SVS P.No: 43225 U, 43226 W, 43227 Y 43364 J
Tool kit for UC130-SVS P.No: 43225 U, 43226 W, 43227 Y 43386 V

216 UC120 OUTBOARD CYLINDERS 43572 S
Seal kit
43614 F
Tool kit
UC68-OBS OUTBOARD CYLINDER
AVAILABLE Stainless steel tilt tube extension 39495 B
SPARE UC132-OBS OUTBOARD CYLINDER
PARTS Stainless steel tilt tube extension 39495 B
Extension rod connecting pin 40917 J

ZTF
Kit OB 43643 N
UC130-ZTF 43634 M
Replaceable heads kit 43364 J
Tilt tube stainless steel rod 42666 W
Spacer kit 41812 Z
Plastic cap kit 41810 X
Engine rod bolt and screw kit 41809 L
KIT Y (Yamaha ) mechanical cables 43640 G
®
KIT S2 (Suzuki ) mechanical cables 43641 J
®
KIT M2 (Mercury ) mechanical cables 43642 L
®
KIT ND1-Y (Yamaha ) 43639 Y
®
WARNING KIT QU1-Y (Yamaha ) 43638 W
®
®
In order to mantain the KIT QU1-S (Suzuki ) ® 43635 P
43636 S
KIT ND1-MM (Mercury )
correct functionality Nickel plate plug+ o-ring kit 43637 U
SPARE PARTS – MECHANICAL PRODUCTS
of the product, the
replacement with
spare parts has to be INBOARD CYLINDERS
made by qualified Balljoint for UC69-I 40883 U
Balljoint for UC116-I
39477 Z
technicians only. Balljoint for UC168-I and UC215-I 39478 B
Balljoint for UC293-I 40178 W
Balljoint for UC378-I 41310 Y
Balljoint and shim for UC69-I 40884 W
Balljoint and shim for UC116-I 39479 D
Balljoint and shim for UC168-I e UC215-I 39480 M
Balljoint and shim for UC293-I 40180 G
Balljoint and shim for UC378-I 41311 A
STERNDRIVE CYLINDERS
Extension rod connecting pin 40917 J
NUT AND SLEEVE
Brass nut and sleeve 71004 K
Nickel plated brass nut and sleeve 71013 L
