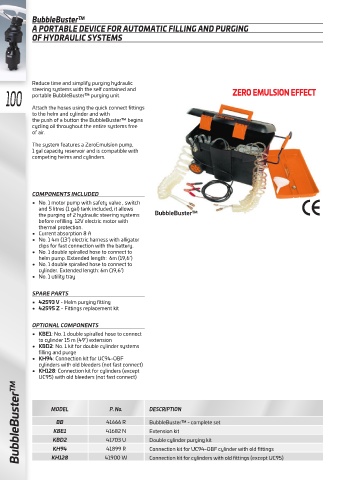

Page 102 - ULTRAFLEX Katalog 2021

BubbleBuster™
A PORTABLE DEVICE FOR AUTOMATIC FILLING AND PURGING
OF HYDRAULIC SYSTEMS

Reduce time and simplify purging hydraulic
100 portable BubbleBuster™ purging unit. ZERO EMULSION EFFECT
steering systems with the self contained and

Attach the hoses using the quick connect fittings
to the helm and cylinder and with
the push of a button the BubbleBuster™ begins
cycling oil throughout the entire systems free
of air.

The system features a ZeroEmulsion pump,
1 gal capacity reservoir and is compatible with
competing helms and cylinders.

COMPONENTS INCLUDED
• No. 1 motor pump with safety valve , switch
and 5 litres (1 gal) tank included, it allows
the purging of 2 hydraulic steering systems BubbleBuster™
before refilling. 12V electric motor with
thermal protection.
• Current absorption 8 A
• No. 1 4m (13’) electric harness with alligator
clips for fast connection with the battery.
• No. 1 double spiralled hose to connect to
helm pump. Extended length: 6m (19,6’)
• No. 1 double spiralled hose to connect to
cylinder. Extended length: 6m (19,6’)
• No. 1 utility tray

SPARE PARTS
• 42593 V - Helm purging fitting
• 42595 Z - Fittings replacement kit

OPTIONAL COMPONENTS
• KBE1: No. 1 double spiralled hose to connect
to cylinder 15 m (49’) extension
• KBD2: No. 1 kit for double cylinder systems
filling and purge
• KH94: Connection kit for UC94-OBF
cylinders with old bleeders (not fast connect)
• KH128: Connection kit for cylinders (except
UC95) with old bleeders (not fast connect)
BubbleBuster™ MODEL 41900 W BubbleBuster™ - complete set

P. No.
DESCRIPTION
BB
41666 R
Extension kit
41682 N
KBE1
KBD2
41703 U
Double cylinder purging kit
41899 R
KH94
Connection kit for UC94-OBF cylinder with old fittings
KH128
Connection kit for cylinders with old fittings (except UC95)
