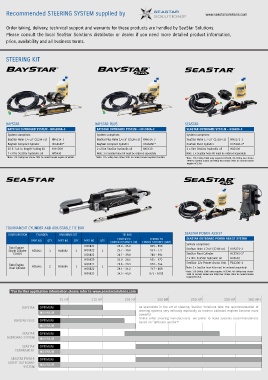

Page 46 - Suzuki Zubehör Hauptkatalog 2017

Recommended STEERING SYSTEM supplied by www.seastarsolutions.com
®

Order taking, delivery, technical support and warranty for these products are handled by SeaStar Solutions.
Please consult the local SeaStar Solutions distributor or dealer if you need more detailed product information,
price, availability and all business terms.

STEERING KIT

TM

BAYSTAR BAYSTAR PLUS SEASTAR
BAYSTAR OUTBOARD SYSTEM - HK4200A-3 BAYSTAR OUTBOARD SYSTEM - HK4500A-3 SEASTAR OUTBOARD SYSTEM - HK6400-3
System comprises: System comprises: System comprises:
BayStar Helm 1.4 cu” (22.94 cc) HH4314-3 BayStar Plus Helm 1.4 cu” (22.94 cc) HH4514-3 SeaStar Helm 1.7 cu” (27.80 cc) HH5271-3
BayStar Compact Cylinder HC4645H* BayStar Compact Cylinder HC4645H* SeaStar Pivot Cylinder HC5345-3*
20 ft “cut to length” tubing kit HT4420H 2 x litre SeaStar hydraulic oil HA5430 2 x litre SeaStar hydraulic oil HA5430
2 x litre SeaStar hydraulic oil HA5430 Note: 1 x SeaStar hose kit must be ordered separately Note: 1 x SeaStar hose kit must be ordered separately
* Note: 115-140hp four stroke 2001 to current model require HC4658H. * Note: 115-140hp four stroke 2001 to current model require HC4658H. * Note: 115-140hp 1996 only requires HC5348, 40-140hp four stroke
1998 to current model and 90hp four stroke 2003 to current model
require HC5358.

TOURNAMENT CYLINDER AND ADJUSTABLE TIE BAR
CONFIGURATION CYLINDER HARDWARE KIT TIE BAR SEASTAR POWER ASSIST
PART NO. QTY. PART NO QTY. PART NO. QTY. CENTER TO CENTER TO SEASTAR OUTBOARD POWER ASSIST SYSTEM
CENTER DISTANCE (IN) CENTER DISTANCE (MM)
HO6821 25.0 - 25.6 635 - 650 System comprises:
Twin Engine - SeaStar Helm 1.7cu” (27.80 cc) HH5271-3
Single Cylinder HC6845 1 HA6802 1 HO6822 1 25.7 - 30.6 653 - 777
(STBD) HO6823 30.7 - 39.0 780 - 991 SeaStar Pivot Cylinder HC5345-3*
HO6820 25.0 - 26.5 635 - 673 2 x litre SeaStar hydraulic oil HA5430
Twin Engine - HC6845 2 HA6804 1 HO6821 1 26.6 - 29.3 676 - 744 SeaStar 12v Power Assist Unit PA1200-2
Dual Cylinder HO6822 29.4 - 34.2 747 - 869 Note: 2 x SeaStar hose kits must be ordered separately
* Note: 115-140hp 1996 only requires HC5348, 40-140hp four stroke
HO6823 34.3 - 43.0 871 - 1092 1998 to current model and 90hp four stroke 2003 to current model
require HC5358.

*For further application information please refer to www.seastarsolutions.com
75 HP 115 HP 150 HP 200 HP 250 HP 300 HP 300 HP+

BAYSTAR OPTIMUM As specialists in the art of steering, SeaStar Solutions take the recommendation of
MAXIMUM steering systems very seriously especially as modern outboard engines become more
powerful.
Unlike other steering manufacturers we prefer to make systems recommendations
BAYSTAR PLUS OPTIMUM based on “optimum comfort”
MAXIMUM
SEASTAR OPTIMUM
OUTBOARD SYSTEM MAXIMUM
SEASTAR OPTIMUM
TOURNAMENT MAXIMUM

SEASTAR POWER OPTIMUM
ASSIST OUTBOARD MAXIMUM
SYSTEM
