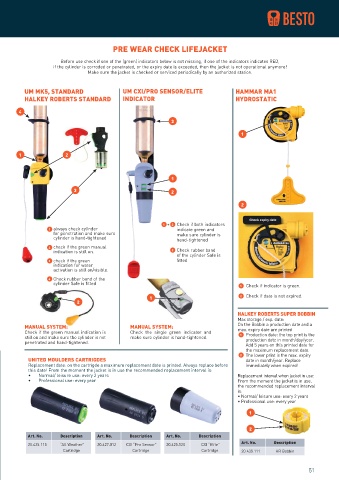

PRE WEAR CHECK LIFEJACKET

                      Before use check if one of the (green) indicators below is not missing, if one of the indicators indicates RED,
                    if the cylinder is corroded or penetrated, or the expiry date is exceeded, then the jacket is not operational anymore!
                                Make sure the jacket is checked or serviced periodically by an authorized station.


          UM MK5, STANDARD                   UM CXI/PRO SENSOR/ELITE                 HAMMAR MA1
          HALKEY ROBERTS STANDARD            INDICATOR                               HYDROSTATIC

        4
                                                             3

                                                                                      1


        1               2



                                                             1

                           3                                 2

                                                                                      2


                                                          1 +  2  Check if both indicators
                  1  always check cylinder                     indicate green and
                    for penetration and make sure              make sure cylinder is
                    cylinder is hand-tightened                 hand-tightened
                  2  check if the green manual
                    indication is still on.                  3  Check rubber band
                                                               of the cylinder Safe is
                  3  check if the green                        fitted
                    indication for water
                    activation is still on/visible.
                  4  Check rubber band of the
                    cylinder Safe is fitted
                                                                                     1  Check if indicator is green.
                                                      1                              2  Check if date is not expired.
                            2
                                                                                    HALKEY ROBERTS SUPER BOBBIN
                                                                                    Max storage / exp. date:
          MANUAL SYSTEM:                       MANUAL SYSTEM:                       On the Bobbin a production date and a
          Check if the green manual indication is   Check  the  single  green  indicator  and   max. expiry date are printed
          still on and make sure the cylinder is not   make sure cylinder is hand-tightened.  1    Production date: the top print is the
          penetrated and hand-tightened.                                               production date in month/day/year.
                                                                                       Add 5 years on this printed date for
                                                                                       the maximum replacement date.
                                                                                     2  The lower print is the max. expiry
           UNITED MOULDERS CARTRIGDES                                                  date in month/year. Replace
           Replacement date: on the cartrigde a maximum replacement date is printed. Always replace before   immediately when expired!
           this date! From the moment the jacket is in use the recommended replacement interval is:
           •   Normal/ leisure use: every 2 years                                   Replacement interval when jacket in use:
           •   Professional use: every year                                         From the moment the jacket is in use,
                                                                                    the recommended replacement interval
                                                                                    is:
                                                                                    • Normal/ leisure use: every 2 years
                                                                                    • Professional use: every year

                                                                                         1

                                                                                         2
           Art. No.   Description  Art. No.    Description  Art. No.   Description
           20.425.115   “All Weather”   20.427.012   CXI “Pro Sensor”   20.425.120   CXI “Elite”   Art. No.  Description
                       Cartridge                Cartridge               Cartridge     20.435.111  HR Bobbin
