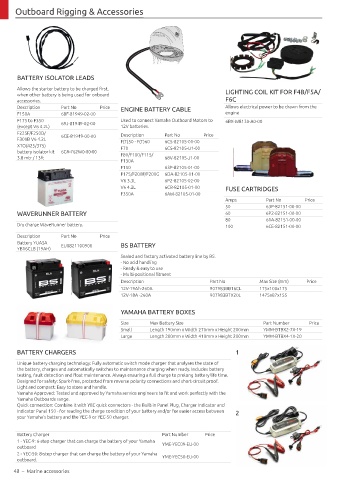

Page 50 - Yamaha Marine Marine Zubehör 2019

Outboard Rigging & Accessories

BATTERY ISOLATOR LEADS

Allows the starter battery to be charged first, LIGHTING COIL KIT FOR F4B/F5A/
when other battery is being used for onboard
accessories. F6C
Description Part No Price ENGINE BATTERY CABLE Allows electrical power to be drawn from the
F150A 68F-81949-02-00 engine
F175 to F350 69J-81949-02-00 Used to connect Yamaha Outboard Motors to 6BX-W8130-A0-00
(except V6 4.2L) 12V batteries.
F225F/F250D/ 6CE-81949-00-00 Description Part No Price
F300B V6 4.2L F(T)50 - F(T)60 6C5-82105-01-00
XTO(425/375) F70 6C5-82105-U1-00
battery isolator kit 6GR-762W0-00-00
3.8 mtr / 13ft F80/F100/F115/ 68V-82105-J1-00
F130A
F150 63P-82105-01-00
F175/F200F/F200G 6DA-82105-01-00
V6 3.3L 6P2-82105-02-00
V6 4.2L 6CB-82105-01-00 FUSE CARTRIDGES
F350A 6AW-82105-01-00
Amps Part No Price
50 63P-82151-00-00
WAVERUNNER BATTERY 60 6P2-82151-00-00
80 61A-82151-00-00
Dry charge WaveRunner battery. 100 6CE-82151-00-00
Description Part No Price
Battery YUASA EU0821100900 BS BATTERY
YB16CLB (19AH)
Sealed and factory activated battery line by BS.
- No acid handling
- Ready & easy to use
- Multi-positional fitment
Description Part No Max Size (mm) Price
12V-19Ah-260A 907983BB16CL 175x100x175
12V-18A -260A 907983BTX20L 1475x87x155

YAMAHA BATTERY BOXES
Size Max Battery Size Part Number Price
Small Length 190mm x Width 270mm x Height 200mm YMM-BTBX2-7X-19
Large Length 200mm x Width 410mm x Height 200mm YMM-BTBX4-1X-20

BATTERY CHARGERS 1

Unique battery charging technology: Fully automatic switch mode charger that analyses the state of
the battery, charges and automatically switches to maintenance charging when ready. Includes battery
testing, fault detection and float maintenance. Always ensuring a full charge to prolong battery life time.
Designed for safety: Spark-free, protected from reverse polarity connections and short-circuit proof.
Light and compact: Easy to store and handle.
Yamaha Approved: Tested and approved by Yamaha service engineers to fit and work perfectly with the
Yamaha Outboards range.
Quick connection: Combine it with YEC quick connectors - the Built-in Panel Plug, Charger Indicator and
Indicator Panel 150 - for reading the charge condition of your battery and/or for easier access between 2
your Yamaha's battery and the YEC-9 or YEC-50 charger.

Battery Charger Part Number Price
1 - YEC-9: 6-step charger that can charge the battery of your Yamaha YME-YEC09-EU-00
outboard
2 - YEC-50: 8-step charger that can charge the battery of your Yamaha YME-YEC50-EU-00
outboard.

48 – Marine accessories
