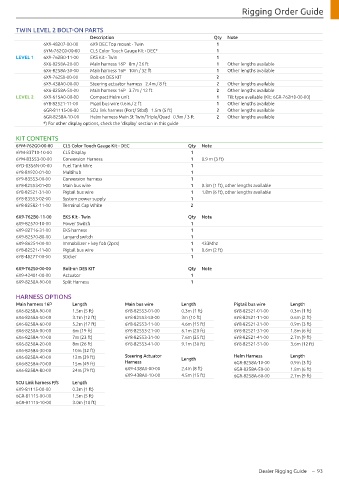

Rigging Order Guide

TWIN LEVEL 2 BOLT-ON PARTS
Description Qty Note
6X9-48207-00-00 6X9 DEC Top mount - Twin 1
6YM-762G0-00-00 CL5 Color Touch Gauge Kit - DEC* 1
LEVEL 1 6X9-762B0-11-00 EKS Kit - Twin 1
6X6-8258A-20-00 Main harness 16P 8m / 26 ft 1 Other lengths available
6X6-8258A-30-00 Main harness 16P 10m / 32 ft 1 Other lengths available
6X9-762S0-00-00 Bolt-on DES KIT 2
6X9-438A0-00-00 Steering actuator harness 2.4m / 8 ft 2 Other lengths available
6X6-8258A-50-00 Main harness 16P 3.7m / 12 ft 2 Other lengths available
LEVEL 2 6X9-615A0-00-00 Compact Helm unit 1 Tilt type available (Kit: 6GR-762H0-00-00)
6Y8-82521-11-00 Pigail bus wire 0.6m / 2 ft 1 Other lengths available
6GR-81115-00-00 SCU link harness (Port/ Stbd) 1.5m (5 ft) 2 Other lengths available
6GR-8258A-10-00 Helm harness Main St Twin/Triple/Quad 0.9m / 3 ft 2 Other lengths available
*) For other display options, check the 'display' section in this guide

KIT CONTENTS
6YM-762G0-00-00 CL5 Color Touch Gauge Kit - DEC Qty Note
6YM-83710-10-00 CL5 Display 1
6YM-83553-00-00 Conversion Harness 1 0.9 m (3 ft)
6YD-8356N-00-00 Fuel Tank Wire 1
6Y8-81920-01-00 Multihub 1
6Y9-83553-00-00 Conversion harness 1
6Y8-82553-01-00 Main bus wire 1 0.3m (1 ft), other lengths available
6Y8-82521-31-00 Pigtail bus wire 1 1.8m (6 ft), other lengths available
6Y8-83553-02-00 System power supply 1
6Y8-82582-11-00 Terminal Cap White 2
6X9-762B0-11-00 EKS Kit - Twin Qty Note
6X9-82570-10-00 Power Switch 1
6X9-82716-31-00 EKS harness 1
6X9-82570-80-00 Lanyard switch 1
6X9-86254-00-00 Immobilizer + key fob (2pcs) 1 433Mhz
6Y8-82521-11-00 Pigtail bus wire 1 0.6m (2 ft)
6Y8-48277-00-00 Sticker 1
6X9-762S0-00-00 Bolt-on DES KIT Qty Note
6X9-42401-00-00 Actuator 1
6X9-8258A-90-00 Split Harness 1

HARNESS OPTIONS
Main harness 16P Length Main bus wire Length Pigtail bus wire Length
6X6-8258A-90-00 1.5m (5 ft) 6Y8-82553-01-00 0.3m (1 ft) 6Y8-82521-01-00 0.3m (1 ft)
6X6-8258A-50-00 3.7m (12 ft) 6Y8-82553-50-00 3m (10 ft) 6Y8-82521-11-00 0.6m (2 ft)
6X6-8258A-60-00 5.2m (17 ft) 6Y8-82553-11-00 4.6m (15 ft) 6Y8-82521-21-00 0.9m (3 ft)
6X6-8258A-00-00 6m (19 ft) 6Y8-82553-21-00 6.1m (20 ft) 6Y8-82521-31-00 1.8m (6 ft)
6X6-8258A-10-00 7m (23 ft) 6Y8-82553-31-00 7.6m (25 ft) 6Y8-82521-41-00 2.7m (9 ft)
6X6-8258A-20-00 8m (26 ft) 6Y8-82553-41-00 9.1m (30 ft) 6Y8-82521-51-00 3.6m (12 ft)
6X6-8258A-30-00 10m (32 ft)
6X6-8258A-40-00 12m (39 ft) Steering Actuator Length Helm Harness Length
6X6-8258A-70-00 15m (49 ft) Harness 6GR-8258A-10-00 0.9m (3 ft)
6X6-8258A-80-00 24m (79 ft) 6X9-438A0-00-00 2.4m (8 ft) 6GR-8258A-50-00 1.8m (6 ft)
6X9-438A0-10-00 4.5m (15 ft) 6GR-8258A-60-00 2.7m (9 ft)
SCU Link harness P/S Length
6X9-81115-00-00 0.3m (1 ft)
6GR-81115-00-00 1.5m (5 ft)
6GR-81115-10-00 3.0m (10 ft)

Dealer Rigging Guide – 93
