Rigging Order Guide

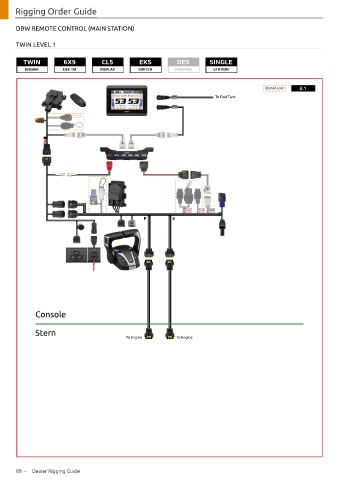

       DBW REMOTE CONTROL (MAIN STATION)


       TWIN LEVEL 1


         TWIN          6X9           CL5          EKS          DES         SINGLE
          ENGINE       DEC TM       DISPLAY       SWITCH      STEERING      STATION


                                                                                              Do not use!  2.1
                                                                             To Fuel Tank























                                                                  2nd  2nd  6Y9
                                                    P         S


















             Console


             Stern
                                             To Engine         To Engine
