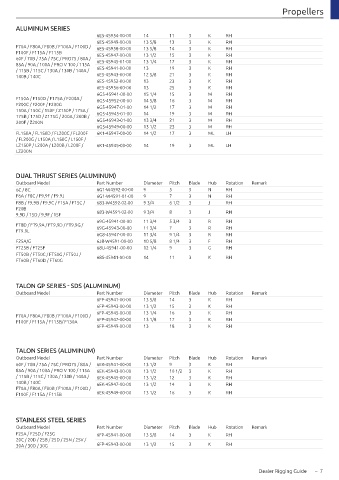

Page 9 - Yamaha Marine Zubehör 2021
P. 9
Propellers
ALUMINUM SERIES
6E5-45954-00-00 14 11 3 K RH
6E5-45949-00-00 13 5/8 13 3 K RH
F70A / F80A / F80B / F100A / F100D / 6E5-45958-00-00 13 5/8 14 3 K RH
F100F / F115A / F115B 6E5-45947-00-00 13 1/2 15 3 K RH
60F / 70B / 75A / 75C / PRO75 / 80A /
85A / 90A / 100A / PRO V 100 / 115A 6E5-45945-01-00 13 1/4 17 3 K RH
/ 115B / 115C / 130A / 130B / 140A / 6E5-45941-00-00 13 19 3 K RH
140B / 140C 6E5-45943-00-00 12 5/8 21 3 K RH
6E5-45952-00-00 13 23 3 K RH
6E5-45956-00-00 13 25 3 K RH
6G5-45941-00-00 15 1/4 15 3 M RH
F150A / F150D / F175A / F200A /
6G5-45952-00-00 14 5/8 16 3 M RH
F200C / F200F / F200G 6G5-45947-01-00 14 1/2 17 3 M RH
150A / 150C / 150F / Z150P / 175A /
6G5-45945-01-00 14 19 3 M RH
175B / 175D / Z175G / 200A / 200B /
200F / Z200N 6G5-45943-01-00 13 3/4 21 3 M RH
6G5-45949-00-00 13 1/2 23 3 M RH
FL150A / FL150D / FL200C / FL200F 6K1-45947-00-00 14 1/2 17 3 ML LH
/ FL200G / L150A / L150C / L150F /
LZ150P / L200A / L200B / L200F / 6K1-45945-00-00 14 19 3 ML LH
LZ200N
DUAL THRUST SERIES (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6C / 8C 6G1-W4592-00-00 9 5 3 N RH
F6A / F8C / F9,9F / F9.9J 6G1-W4591-01-00 9 7 3 N RH
F8B / F9,9B / F9,9C / F15A / F15C / 683-W4592-02-00 9 3/4 6 1/2 3 J RH
F20B
9,9D / 15D / 9,9F / 15F 683-W4591-02-00 9 3/4 8 3 J RH
69G-45941-00-00 11 3/4 5 3/4 3 R RH
FT8D / FT9,9A / FT9,9D / FT9,9G /
69G-45943-00-00 11 3/4 7 3 R RH
FT9.9L
6G8-45947-00-00 11 3/4 9 1/4 3 R RH
F25A/G 6J8-W4591-00-00 10 5/8 8 1/4 3 F RH
FT25B / FT25F 68U-45941-00-00 12 1/4 9 3 G RH
FT50B / FT50C / FT50G / FT50J / 68S-45941-00-00 14 11 3 K RH
FT60B / FT60D / FT60G
TALON GP SERIES - SDS (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6FP-45941-00-00 13 5/8 14 3 K RH
6FP-45943-00-00 13 1/2 15 3 K RH
6FP-45945-00-00 13 1/4 16 3 K RH
F70A / F80A / F80B / F100A / F100D /
F100F / F115A / F115B/ F130A 6FP-45947-00-00 13 1/8 17 3 K RH
6FP-45949-00-00 13 18 3 K RH
TALON SERIES (ALUMINUM)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
60F / 70B / 75A / 75C / PRO75 / 80A / 6EK-45941-00-00 13 1/2 9 3 K RH
85A / 90A / 100A / PRO V 100 / 115A 6EK-45943-00-00 13 1/2 10 1/2 3 K RH
/ 115B / 115C / 130A / 130B / 140A / 6EK-45945-00-00 13 1/2 12 3 K RH
140B / 140C
6EK-45947-00-00 13 1/2 14 3 K RH
F70A / F80A / F80B / F100A / F100D /
F100F / F115A / F115B 6EK-45949-00-00 13 1/2 16 3 K RH
STAINLESS STEEL SERIES
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
F25A / F25D / F25G 6FP-45941-00-00 13 5/8 14 3 K RH
20C / 20D / 25B / 25D / 25N / 25V /
30A / 30D / 30G 6FP-45943-00-00 13 1/2 15 3 K RH
Dealer Rigging Guide – 7
