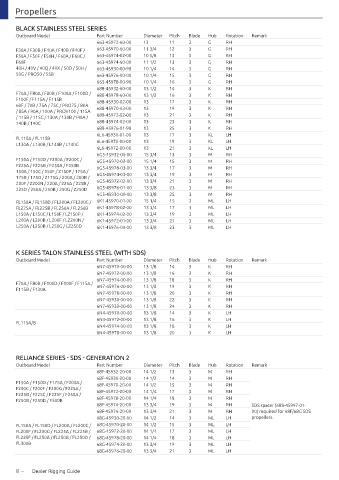

Page 10 - Yamaha Marine Zubehör 2021
P. 10
Propellers
BLACK STAINLESS STEEL SERIES
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
663-45972-60-00 12 11 3 G RH
F30A / F30B / F40A / F40B / F40F / 663-45970-60-00 11 3/4 12 3 G RH
F50A / F50F / F50H / F60A / F60C / 663-45974-02-00 10 5/8 13 3 G RH
F60F 663-45974-60-00 11 1/2 13 3 G RH
40H / 40V / 40Q / 40X / 50D / 50H / 663-45930-00-98 10 1/4 14 3 G RH
50G / PRO50 / 55B 663-45976-00-00 10 1/4 15 3 G RH
663-45978-00-98 10 1/4 16 3 G RH
688-45932-60-00 13 1/2 14 3 K RH
F70A / F80A / F80B / F100A / F100D / 688-45978-60-00 13 1/2 16 3 K RH
F100F / F115A / F115B 688-45930-02-00 13 17 3 K RH
60F / 70B / 75A / 75C / PRO75 / 80A
/ 85A / 90A / 100A / PROV100 / 115A 688-45970-03-00 13 19 3 K RH
/ 115B / 115C / 130A / 130B /140A / 688-45972-02-00 13 21 3 K RH
140B / 140C 688-45974-02-00 13 23 3 K RH
688-45976-01-98 13 25 3 K RH
6L6-45930-01-00 13 17 3 KL LH
FL115A / FL115B 6L6-45970-00-00 13 19 3 KL LH
L130A / L130B / L140B / L140C
6L6-45972-00-00 13 21 3 KL LH
6G5-45932-00-00 15 3/4 13 3 M RH
F150A / F150D / F200A / F200C / 6G5-45970-02-00 15 1/4 15 3 M RH
F225A / F225B / F250A / F250B 6G5-45978-03-00 13 3/4 17 3 M RH
150A / 150C / 150F / Z150P / 175A /
6G5-45974-03-00 13 3/4 19 3 M RH
175B / 175D / Z175G / 200A / 200B /
200F / Z200N / 220A / 225A / 225B / 6G5-45972-02-00 13 3/4 21 3 M RH
225D / 250A / 250B / 250G / Z250D 6G5-45976-01-00 13 3/8 23 3 M RH
6G5-45930-00-00 13 3/8 25 3 M RH
FL150A / FL150D / FL200A / FL200C / 6K1-45970-01-00 15 1/4 15 3 ML LH
FL225A / FL225B / FL250A / FL250B 6K1-45978-02-00 13 3/4 17 3 ML LH
L150A / L150C / L150F / LZ150P / 6K1-45974-02-00 13 3/4 19 3 ML LH
L200A / L200B / L200F / LZ200N / 6K1-45972-01-00 13 3/4 21 3 ML LH
L250A / L250B / L250G / LZ250D 6K1-45976-00-00 13 3/8 23 3 ML LH
K SERIES TALON STAINLESS STEEL (WITH SDS)
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6N7-45970-00-00 13 1/8 14 3 K RH
6N7-45972-00-00 13 1/8 16 3 K RH
6N7-45974-00-00 13 1/8 18 3 K RH
F70A / F80B / F100D / F100F / F115A / 6N7-45976-00-00 13 1/8 19 3 K RH
F115B / F130A
6N7-45978-00-00 13 1/8 20 3 K RH
6N7-45930-00-00 13 1/8 22 3 K RH
6N7-45932-00-00 13 1/8 24 3 K RH
6N4-45970-00-00 13 1/8 14 3 K LH
6N4-45972-00-00 13 1/8 16 3 K LH
FL115A/B
6N4-45974-00-00 13 1/8 18 3 K LH
6N4-45978-00-00 13 1/8 20 3 K LH
RELIANCE SERIES - SDS - GENERATION 2
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
68F-45932-20-00 14 1/2 13 3 M RH
68F-45930-20-00 14 1/2 14 3 M RH
F150A / F150D / F175A / F200A / 68F-45970-20-00 14 1/2 15 3 M RH
F200C / F200F / F200G / F225A / 68F-45972-20-00 14 1/4 17 3 M RH
F225B / F225C / F225F / F250A /
F250B / F250D / F300B 68F-45978-20-00 14 1/4 18 3 M RH
68F-45974-20-00 13 3/4 19 3 M RH SDS spacer (688-45997-01-
68F-45976-20-00 13 3/4 21 3 M RH 00) required for 68F/68G SDS
68G-45930-20-00 14 1/2 14 3 ML LH propellers.
FL150A / FL150D / FL200A / FL200C / 68G-45970-20-00 14 1/2 15 3 ML LH
FL200F / FL200G / FL225A / FL225B / 68G-45972-20-00 14 1/4 17 3 ML LH
FL225F / FL250A / FL250B / FL250D / 68G-45978-20-00 14 1/4 18 3 ML LH
FL300B 68G-45974-20-00 13 3/4 19 3 ML LH
68G-45976-20-00 13 3/4 21 3 ML LH
8 – Dealer Rigging Guide
