Rigging Order Guide

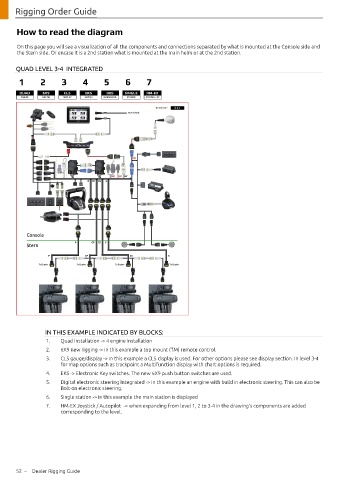

How to read the diagram

On this page you will see a visualization of all the components and connections separated by what is mounted at the Console side and
the Stern side. Or encase it is a 2nd station what is mounted at the main helm or at the 2nd station.

QUAD LEVEL 3-4 INTEGRATED

1 2 3 4 5 6 7

QUAD 6X9 CL5 EKS DES SINGLE HM-EX
ENGINE DEC TM DISPLAY SWITCH INTEGRATED STATION JOYSTICK / AP
Do not use! 4.4.i
To Fuel Tank

4

2nd

2nd 2nd 6Y9
P CP CS S

Console
P CP CS S
Stern
P CP CS S
To Engine To Engine To Engine To Engine

IN THIS EXAMPLE INDICATED BY BLOCKS:
1. Quad installation -> 4 engine installation
2. 6X9 new rigging -> in this example a top mount (TM) remote control.
3. CL5 gauge/display -> in this example a CL5 display is used. For other options please see display section. In level 3-4
for map options such as trackpoint a Multifunction display with chart options is required.
4. EKS -> Electronic Key switches. The new 6X9 push button switches are used.
5. Digital electronic steering Integrated -> in this example an engine with build in electronic steering. This can also be
Bolt-on electronic steering.
6. Single station -> in this example the main station is displayed
7. HM-EX Joystick / Autopilot -> when expanding from level 1, 2 to 3-4 in the drawing’s components are added
corresponding to the level.
