Page 177 - Yamaha Marine Zubehör 2021

Yamalube

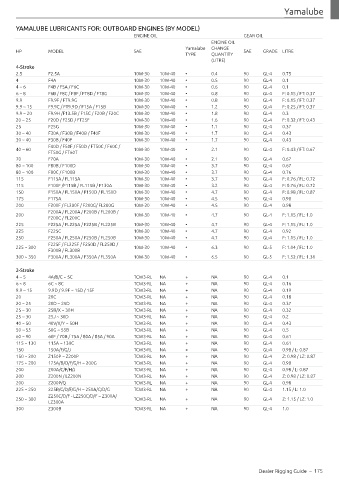

YAMALUBE LUBRICANTS FOR: OUTBOARD ENGINES (BY MODEL)
ENGINE OIL GEAR OIL
ENGINE OIL
Yamalube CHANGE
HP MODEL SAE SAE GRADE LITRE
TYPE QUANTITY
(LITRE)
4-Stroke
2.5 F2.5A 10W-30 10W-40 • 0.4 90 GL-4 0.75
4 F4A 10W-30 10W-40 • 0.5 90 GL-4 0.1
4 ~ 6 F4B / F5A / F6C 10W-30 10W-40 • 0.6 90 GL-4 0.1
6 ~ 8 F6B / F8C / F8F / FT8D / FT8G 10W-30 10W-40 • 0.8 90 GL-4 F: 0.15 / FT: 0.37
9.9 F9.9F / FT9.9G 10W-30 10W-40 • 0.8 90 GL-4 F: 0.15 / FT: 0.37
9.9 ~ 15 F9.9C / FT9.9D / F15A / F15B 10W-30 10W-40 • 1.2 90 GL-4 F: 0.25 / FT: 0.37
9.9 ~ 20 F9.9H /F13.5B / F15C / F20B / F20C 10W-30 10W-40 • 1.8 90 GL-4 0.3
20 ~ 25 F20D / F25D / FT25F 10W-30 10W-40 • 1.6 90 GL-4 F: 0.32 / FT: 0.43
25 F25G 10W-30 10W-40 • 1.1 90 GL-4 0.37
30 ~ 40 F30A / F30B / F40B / F40F 10W-30 10W-40 • 1.7 90 GL-4 0.43
30 ~ 40 F30B / F40F 10W-30 10W-40 • 1.7 90 GL-4 0.43
F40D / F50F / F50D / FT50C / F60C /
40 ~ 60 10W-30 10W-40 • 2.1 90 GL-4 F: 0.43 / FT: 0.67
FT50G / FT60T
70 F70A 10W-30 10W-40 • 2.1 90 GL-4 0.67
80 ~ 100 F80B / F100D 10W-30 10W-40 • 3.7 90 GL-4 0.67
80 ~ 100 F80C / F100B 10W-30 10W-40 • 3.7 90 GL-4 0.76
115 F115A / FL115A 10W-30 10W-40 • 3.7 90 GL-4 F: 0.76 / FL: 0.72
115 F100F /F115B / FL115B / F130A 10W-30 10W-40 • 3.2 90 GL-4 F: 0.76 / FL: 0.72
150 F150A / FL150A / F150D / FL150D 10W-30 10W-40 • 4.7 90 GL-4 F: 0.98 / FL: 0.87
175 F175A 10W-30 10W-40 • 4.5 90 GL-4 0.98
200 F200F / FL200F / F200G/ FL200G 10W-30 10W-40 • 4.5 90 GL-4 0.98
F200A / FL200A / F200B / FL200B /
200 10W-30 10W-40 • 4.7 90 GL-4 F: 1.15 / FL: 1.0
F200C / FL200C
225 F225A / FL225A / F225B / FL225B 10W-30 10W-40 • 4.7 90 GL-4 F: 1.15 / FL: 1.0
225 F225C 10W-30 10W-40 • 4.7 90 GL-4 0.92
250 F250A / FL250A / F250B / FL250B 10W-30 10W-40 • 4.7 90 GL-4 F: 1.15 / FL: 1.0
F225F / FL225F / F250D / FL250D /
225 ~ 300 10W-30 10W-40 • 6.3 90 GL-5 F: 1.04 / FL: 1.0
F300B / FL300B
300 ~ 350 F300A / FL300A / F350A / FL350A 10W-30 10W-40 • 6.5 90 GL-5 F: 1.52 / FL: 1.31

2-Stroke
4 ~ 5 4A/B/C ~ 5C TCW3-RL NA + NA 90 GL-4 0.1
6 ~ 8 6C ~ 8C TCW3-RL NA + NA 90 GL-4 0.16
9.9 ~ 15 9.9D / 9.9F ~ 15D / 15F TCW3-RL NA + NA 90 GL-4 0.19
20 20C TCW3-RL NA + NA 90 GL-4 0.18
20 ~ 25 20D ~ 25D TCW3-RL NA + NA 90 GL-4 0.37
25 ~ 30 25B/X ~ 30H TCW3-RL NA + NA 90 GL-4 0.32
25 ~ 30 25J ~ 30D TCW3-RL NA + NA 90 GL-4 0.2
40 ~ 50 40V/X/Y ~ 50H TCW3-RL NA + NA 90 GL-4 0.43
50 ~ 55 50G ~ 55B TCW3-RL NA + NA 90 GL-4 0.5
60 ~ 90 60F / 70B / 75A / 80A / 85A / 90A TCW3-RL NA + NA 90 GL-4 0.61
115 ~ 130 115A ~ 130C TCW3-RL NA + NA 90 GL-4 0.61
150 150A/F/G/J TCW3-RL NA + NA 90 GL-4 0.98 / L: 0.87
150 ~ 200 Z150P ~ Z200P TCW3-RL NA + NA 90 GL-4 Z: 0.98 / LZ: 0.87
175 ~ 200 175A/B/D/F/G/H ~ 200G TCW3-RL NA + NA 90 GL-4 0.98
200 200A/C/F/H/J TCW3-RL NA + NA 90 GL-4 0.98 / L: 0.87
200 Z200N / LZ200N TCW3-RL NA + NA 90 GL-4 Z: 0.98 / LZ: 0.87
200 Z200P/Q TCW3-RL NA + NA 90 GL-4 0.98
225 ~ 250 225B/C/D/F/G/H ~ 250A/C/D/G TCW3-RL NA + NA 90 GL-4 1.15 / L: 1.0
Z250C/D/F - LZ250C/D/F ~ Z300A/
250 ~ 300 TCW3-RL NA + NA 90 GL-4 Z: 1.15 / LZ: 1.0
LZ300A
300 Z300B TCW3-RL NA + NA 90 GL-4 1.0

Dealer Rigging Guide – 175
